产品详情
- Power gain = 3.25dB
- Direct 100Ω differential drive from Tx DAC
- 590mW power consumption
- -158dBm/Hz output noise
- IP2O = +60dBm at 2GHz
- IP3O = +36dBm at 2GHz
- Excellent native LO and image suppression
- 600MHz input 1dB bandwidth
- 600MHz to 3000MHz RF bandwidth
- Constant LO impedance when OFF
- 3.3V single power supply
- LO port can be driven single-ended or differential

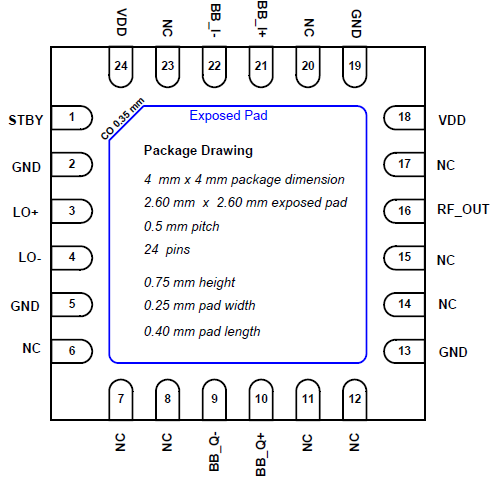

- 4mm x 4mm 24-pin TQFN package

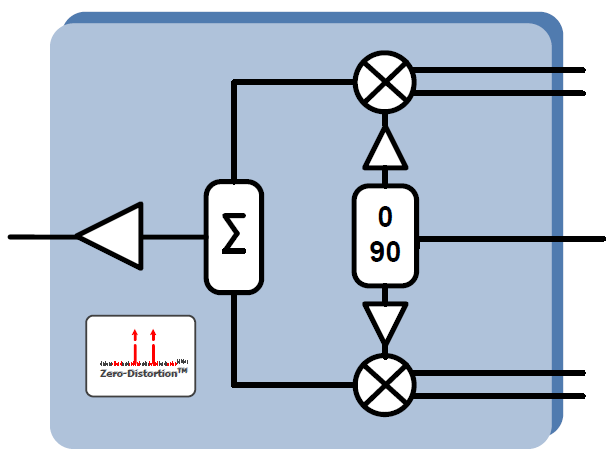

The F1653 broadband ZIF/CIF I/Q modulator is ideal for 高-订单 LTE MIMO systems. The F1653 I/Q Modulator implements Zero-Distortion™ technology for extremely low power consumption with ultra-高 linearity. It 特征 3dB of power gain with very low added noise and interfaces directly with popular JESD204B and DDR DACs.
