产品详情
- RF 范围: 2300MHz to 4200MHz
- 35.5dB typical gain
- +28dBm OP1dB at 2.6GHz
- 0.6dB max gain flatness across 100MHz BW
- 100Ω differential input and 50Ω single-ended output impedances
- 1.8V logic-compatible standby mode for power savings
- 5V power supply
- 145mA typical quiescent current consumption
- Operating temperature (TEP) 范围: -40 °C to +115 °C

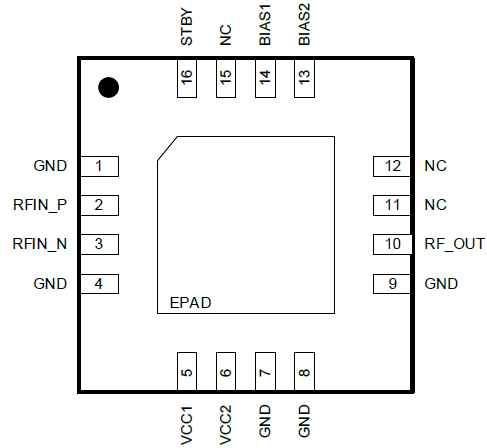

- 3mm × 3 mm, 16-VFQFPN package
The F1427 is a 高-gain, 高-linearity RF driver amplifier designed to operate within the 2300MHz to 4200MHz frequency band. Utilizing a single 5V power supply and 145mA of ICQ, the F1427 provides 35.5dB of gain and +28dBm OP1dB. Additionally, it 支持s fast on-off switching for TDD systems.
The F1427 is packaged in a 3mm × 3 mm, 16-VFQFPN package, with a differential 100Ω input and a single 50Ω output impedance for ease of integration into the signal path.
- 5G sub-6GHz massive MIMO
- Wireless 基础设施 base stations
- Frequency division duplex (FDD) or time division duplex (TDD) systems
- Point-to-point 基础设施
- Public safety 基础设施
- Military handhelds
- Repeaters and distributed antenna systems (DAS)
- General-purpose RF
