Product Details
- Gain at 2600MHz
- 34dB typical in High Gain Mode
- 28dB typical in Low Gain Mode
- 1.5dB NF at 2600MHz
- +23dBm OIP3 at 2600MHz
- OP1dB at 2600MHz
- +15dBm in High Gain Mode
- +14dBm in Low Gain Mode
- 50? single-ended input/output amplifier impedances
- IDD = 130mA
- Independent Standby Mode for power savings
- Supply voltage: +3.15V to +3.45V
- 5mm × 5mm, 32-LGA package
- -40 °C to +105 °C exposed pad operating temperature range

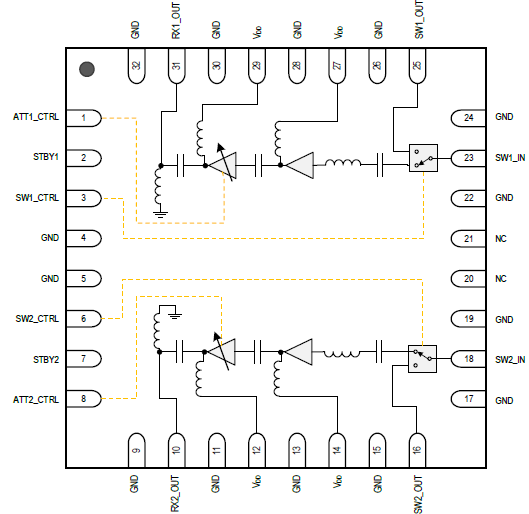

The F0452 is an integrated dual-path RF front-end consisting of an RF switch and two gain stages with 6dB gain control used in the analog front-end receiver of an Active Antenna System (AAS). The F0452 supports frequencies from 2300MHz to 2700MHz.
The F0452 provides 34dB gain with +23dBm OIP3, +15dBm output P1dB, and a 1.5dB noise figure at 2600MHz. Gain is reduced 6dB in a single step with a maximum settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD.
The F0452 is offered in a 5mm x 5mm x 0.8mm, 32-LGA package with 50? input and output amplifier impedances for ease of integration into the signal path.
- Multi-mode, multi-carrier receivers
- 4.5G (LTE Advanced)
- 5G band 42
Product Documents
Type
Name
Date
Actions
2025-08-25
AN-874 Using the TRL Calibration Board for the F0480 Matched Broadband RF VGA
2025-08-25
PCN# : 210022 Datasheet Parameter Change for Select RFD Devices
Design & Development (Boards and Kit)
.png)
Evaluation Board for F0452 Switch / LNA
The F0452EVB is a fully populated test board enabling easy evaluation of the F0452 Switch / LNA performance.
