- RF connectors for RF1 and RF2
- The F2910EVkit has a number of control 特征 available
- Refer to the EVkit 应用 Circuit , EVkit Picture and 应用s 信息 in the F2910 数据表 to properly connect to and control the evaluation board 特征.
- All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board
- “Thru” port connectors are located on the evaluation board for easy calibration prior to making RF measurements

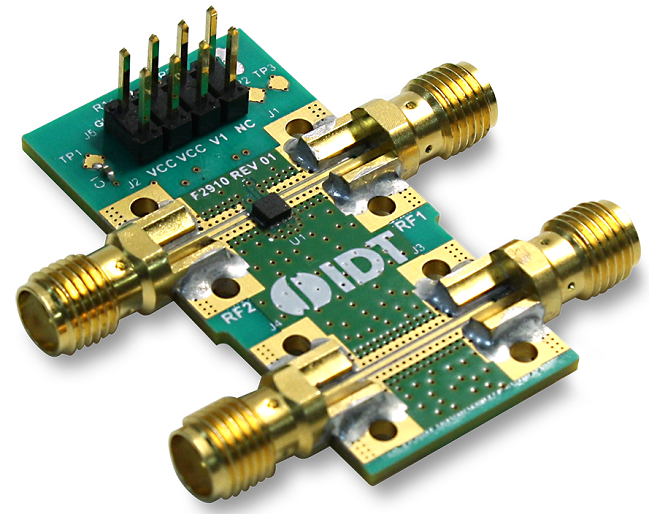

The F2910EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2910 RF switch.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by 申请ing the correct control logic voltage to the V1 control pin as outlined in the F2910 数据表. DC power, ground and V1 control voltages are applied to the pin header. A bypass capacitor has been added to the evaluation board to achieve best performance from 5 – 8 GHz, as described in the 应用s Circuit section of the 数据表.
部件号 (1)
F2910EVBI
