AX100

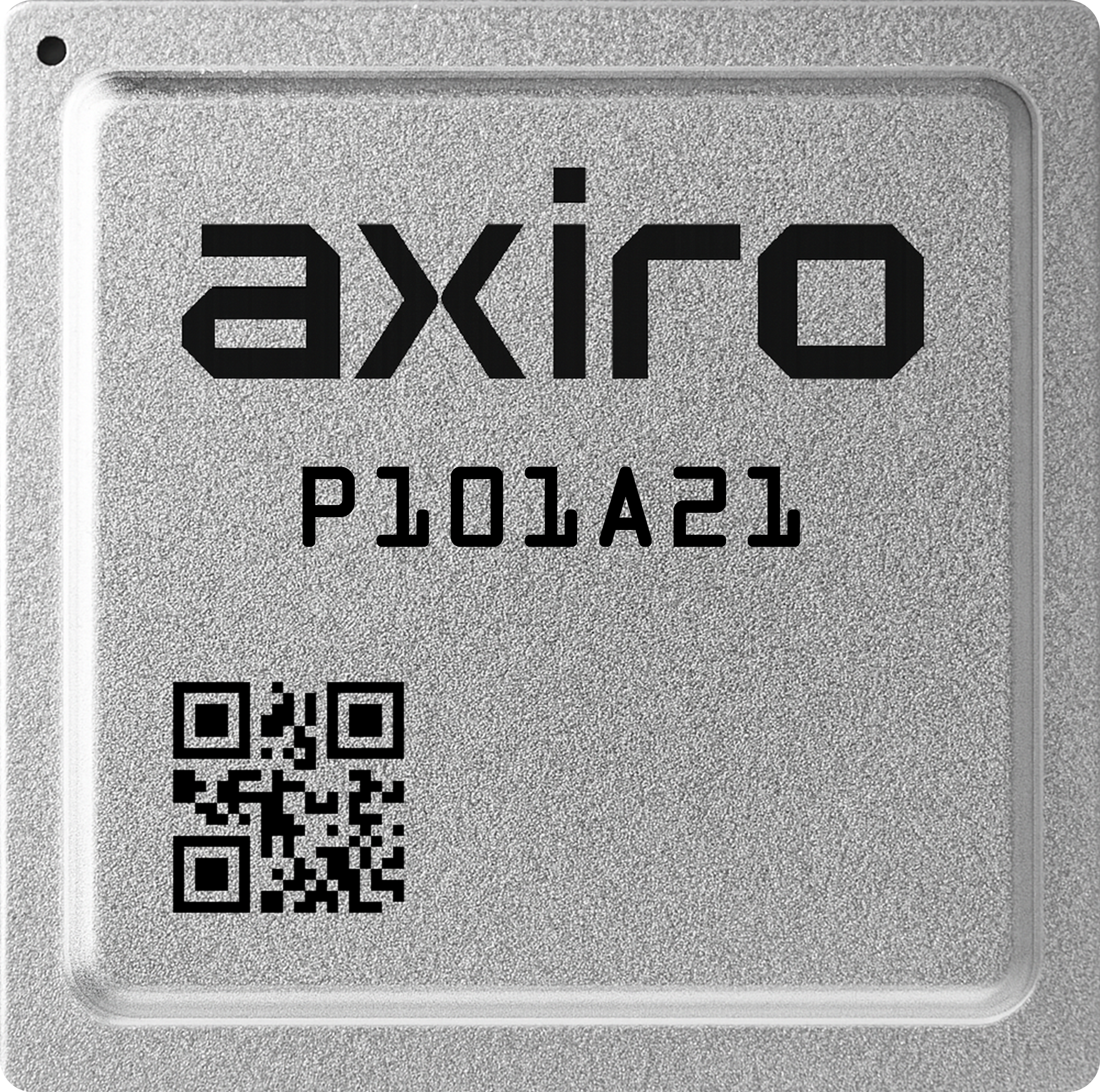

Name: P101A21
Brand: Axiro
SKU: SKU12345
Availability: InStock

P101A21

联系销售人员

产品详情

特征
描述
应用

6x Cortex-A55 CPUs up to 2.0GHz for responsive 应用 performance
IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering
Dedicated AI accelerator with TensorFlow and Caffe 支持

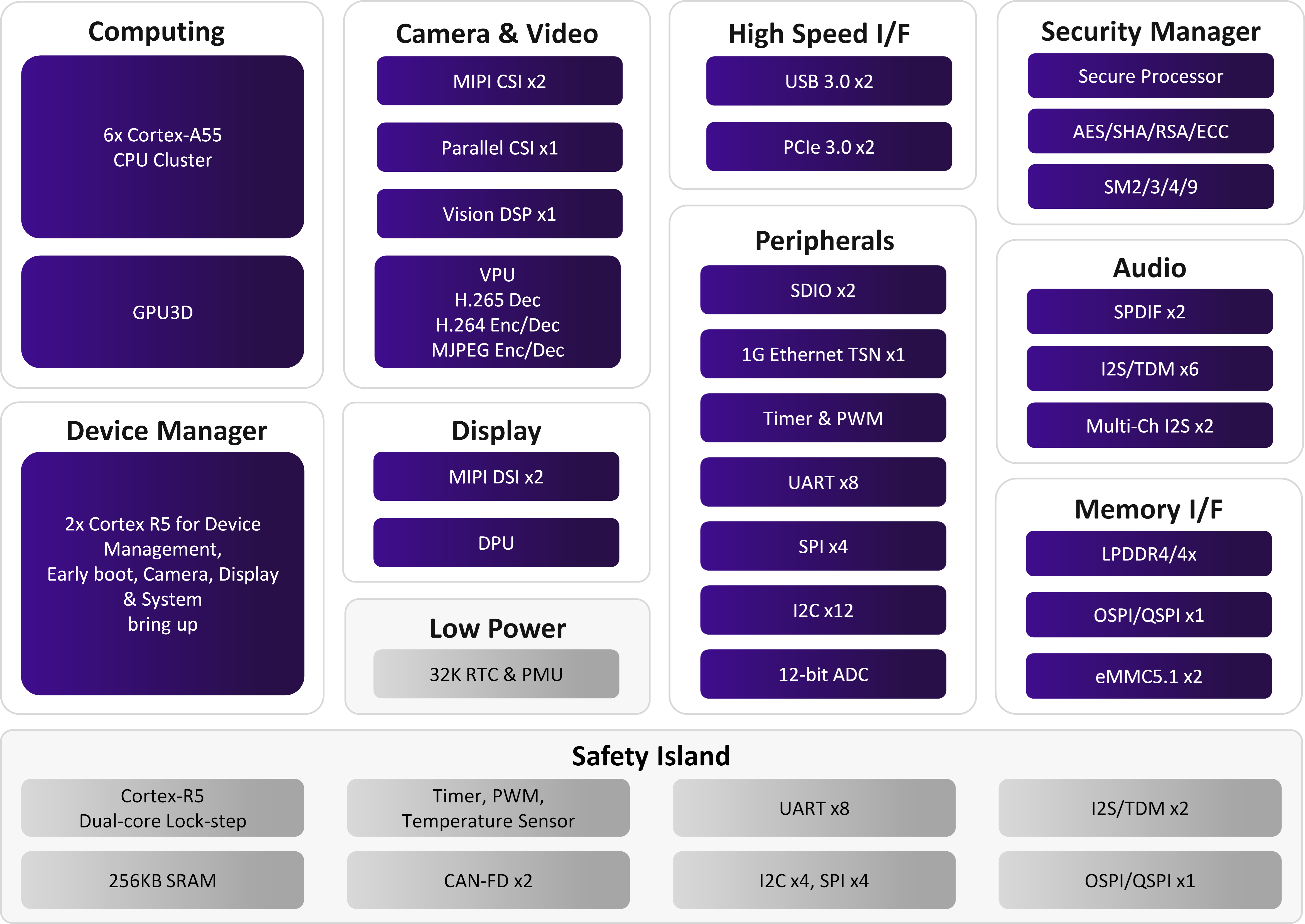

Three-domain 建筑学 for 应用 processing, safety, and low-power control
Secure processor based on Cortex-R5 in DCLS mode
Multi-purpose processor based on Cortex-R5 in DCLS mode
Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode
2x 4-lane MIPI-DSI display interfaces
4x LVDS display interfaces for multi-display cockpit layouts
2x 4-lane MIPI-CSI interfaces 支持ing 4 virtual channels
1x 8-bit parallel CSI interface for added camera flexibility
H.264 video encode/decode 支持
H.265 / VP8 / VP9 video decode 支持
32-bit DRAM interface up to 4267MT/s
LPDDR4 / LPDDR4x / DDR4 memory 支持 with optional inline ECC
2x USB 3.0 interfaces
2x PCIe 3.0 dual-role RC/EP interfaces
2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces
1x Gigabit Ethernet TSN and 2x CAN-FD for 汽车 networking and control
RTC, system power/reset control, and 2048-bit secure storage register for low-power always-on system management
汽车 AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1

6x Cortex-A55 CPUs up to 2.0GHz for responsive 应用 performance
IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering
Dedicated AI accelerator with TensorFlow and Caffe 支持
Three-domain 建筑学 for 应用 processing, safety, and low-power control
Secure processor based on Cortex-R5 in DCLS mode
Multi-purpose processor based on Cortex-R5 in DCLS mode
Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode
2x 4-lane MIPI-DSI display interfaces
4x LVDS display interfaces for multi-display cockpit layouts
2x 4-lane MIPI-CSI interfaces 支持ing 4 virtual channels
1x 8-bit parallel CSI interface for added camera flexibility
H.264 video encode/decode 支持
H.265 / VP8 / VP9 video decode 支持
32-bit DRAM interface up to 4267MT/s
LPDDR4 / LPDDR4x / DDR4 memory 支持 with optional inline ECC
2x USB 3.0 interfaces
2x PCIe 3.0 dual-role RC/EP interfaces
2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces
1x Gigabit Ethernet TSN and 2x CAN-FD for 汽车 networking and control
RTC, system power/reset control, and 2048-bit secure storage register for low-power always-on system management
汽车 AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1

AX100 is a 高-performance 汽车应用s processor built to 帮助 OEMs and Tier 1s deliver 下一个-generation digital cockpit platforms with 45 K DMIPS of CPU compute, 140 GFLOPS of GPU performance and 0.4 TOPS of NPU. By combining 应用 processing, advanced display and camera 支持, rich multimedia, broad 汽车 connectivity, and an integrated safety domain, AX100 帮助s simplify system design while providing a scalable foundation for modern cockpit 建筑学s.

AX100 — Mainstream Intelligent Cockpit and IVI

Bring a premium digital experience to mainstream vehicles with the Axiro AX100. Designed for mid-范围 intelligent cockpit and in-vehicle infotainment systems, AX100 combines responsive processing, rich multimedia performance and real-time 3D graphics to power digital clusters, c进入 displays, navigation, voice assistants, and in-vehicle 进入tainment. 支持 for multiple independent displays—including resolutions up to 2.5K at 60 Hz—enables automakers to create engaging, 高-resolution interfaces across the cockpit. Integrated AI and camera-processing capabilities extend the platform to driver and occupant monitoring, surround 查看 and digital video recording, making AX100 an efficient, 高ly integrated foundation for the 下一个 generation of connected, multi-screen vehicles.

产品文档

类型

姓名

日期

动作

PDF

AX100 - Product Brief

pdf | 394.35 KB

2026-08-18

数据表

AX100-数据表.pdf

| 44 KB

2026-08-18

PDF

2026-08-18

AX100 - Product Brief

pdf | 394.35 KB

数据表

2026-08-18

AX100-数据表.pdf

| 44 KB

帮助

Filters

部件号 (1)

P101A21

地位

Primary 应用 CPU

6× Cortex-A55 @ 2.0 GHz

Primary 应用 CPU cache

32 KB I-cache + 32 KB D-cache per core; 128 KB L2 per core; 1 MB L3

Secondary 应用 CPU

Secondary 应用 CPU cache

GPU

IMG PowerVR 9XM GPU

AI / ML acceleration

高-efficiency AI accelerator; 支持s TensorFlow/Caffe

ISP / vision processing

Video encode/decode

H.264 encode/decode; H.265, VP8, VP9 decode

Display interfaces

2× 4-lane MIPI-DSI; 4× LVDS

Camera interfaces

2× 4-lane MIPI-CSI with 4 virtual channels; 1× 8-bit Parallel CSI

应用 SRAM

768 KB system RAM

External DRAM interface

32-bit DRAM interface @ 4267 MT/s; LPDDR4/LPDDR4x; DDR4; optional inline ECC

高-speed interfaces

2× USB 3.0; 2× PCIe 3.0 RC/EP dual-role

Ethernet

1× Gigabit Ethernet TSN

Storage interfaces

2× eMMC 5.1; 2× SD 3.0/SDIO; 1× QuadSPI/OctalSPI

Audio interfaces — 应用 domain

4× SPDIF; 6× single-channel I2S/TDM; 2× multi-channel I2S

ADC

12-bit SAR ADC, 5 MS/s; 4 analog input channels

General peripherals — 应用 domain

4× SPI; 8× UART; 12× I2C; GPIO; PWM; watchdog; timer

Secure processor / HSM

Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM

Multi-purpose processor

Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM

Safety island CPU

Cortex-R5F @ 800 MHz in DCLS mode

Safety island memory

256 KB system RAM; 128 KB ROM; all memory with ECC

Safety island interfaces / peripherals

1× QuadSPI/OctalSPI; 2× single-channel I2S/TDM; 2× CAN-FD; 4× SPI; 8× UART; 4× I2C; GPIO; PWM; temperature sensor; watchdog; timer

Low-power / RTC domain

32 kHz oscillator; real-time clock; system power and reset control; 2048-bit secure storage register

包裹

21 × 21 FCBGA

Junction temperature

-40 to 125°C Tj

汽车 qualification / ESD

AEC-Q100 Grade 2, -40 to 105°C; HBM ESD Level 2; CDM ESD Level C1

查看细节

产品选项

帮助

全屏

部件号 (1)	地位	Primary 应用 CPU	Primary 应用 CPU cache	Secondary 应用 CPU	Secondary 应用 CPU cache	GPU	AI / ML acceleration	ISP / vision processing	Video encode/decode	Display interfaces	Camera interfaces	应用 SRAM	External DRAM interface	高-speed interfaces	Ethernet	Storage interfaces	Audio interfaces — 应用 domain	ADC	General peripherals — 应用 domain	Secure processor / HSM	Multi-purpose processor	Safety island CPU	Safety island memory	Safety island interfaces / peripherals	Low-power / RTC domain	包裹	Junction temperature	汽车 qualification / ESD
P101A21	-	6× Cortex-A55 @ 2.0 GHz	32 KB I-cache + 32 KB D-cache per core; 128 KB L2 per core; 1 MB L3	-	-	IMG PowerVR 9XM GPU	高-efficiency AI accelerator; 支持s TensorFlow/Caffe	-	H.264 encode/decode; H.265, VP8, VP9 decode	2× 4-lane MIPI-DSI; 4× LVDS	2× 4-lane MIPI-CSI with 4 virtual channels; 1× 8-bit Parallel CSI	768 KB system RAM	32-bit DRAM interface @ 4267 MT/s; LPDDR4/LPDDR4x; DDR4; optional inline ECC	2× USB 3.0; 2× PCIe 3.0 RC/EP dual-role	1× Gigabit Ethernet TSN	2× eMMC 5.1; 2× SD 3.0/SDIO; 1× QuadSPI/OctalSPI	4× SPDIF; 6× single-channel I2S/TDM; 2× multi-channel I2S	12-bit SAR ADC, 5 MS/s; 4 analog input channels	4× SPI; 8× UART; 12× I2C; GPIO; PWM; watchdog; timer	Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM	Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM	Cortex-R5F @ 800 MHz in DCLS mode	256 KB system RAM; 128 KB ROM; all memory with ECC	1× QuadSPI/OctalSPI; 2× single-channel I2S/TDM; 2× CAN-FD; 4× SPI; 8× UART; 4× I2C; GPIO; PWM; temperature sensor; watchdog; timer	32 kHz oscillator; real-time clock; system power and reset control; 2048-bit secure storage register	21 × 21 FCBGA	-40 to 125°C Tj	AEC-Q100 Grade 2, -40 to 105°C; HBM ESD Level 2; CDM ESD Level C1
