- 26.5GHz to 29.5GHz operation
- 8 radiation channels, beam-per-polarization
- Flexible output power and 高 efficiency with Dynamic Array Power (DAP™)
- ArraySense™ technology for real-time monitoring
- 高-speed SPI control with RapidBeam™ technology

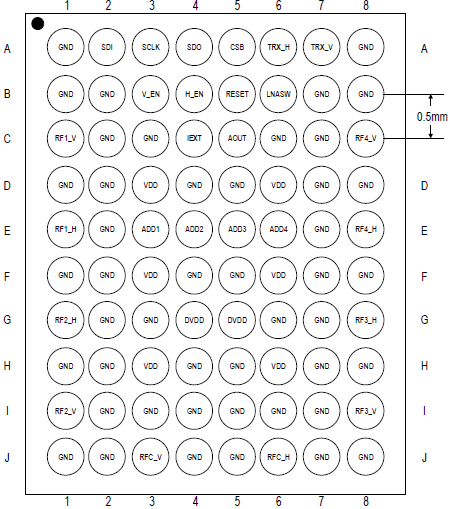

- 5.1mm × 5.1mm, 118-BGA package with exposed-die
- -40 °C to +95 °C ambient operating temperature 范围
The F5288 is an eight-channel transceiver (TRX) silicon IC designed for dual polarization 5G phased-array 应用s at n257/n261 band. This device provides more than 15.5dBm linear output power* in silicon for wideband 5G-NR waveforms.
*Power level with < 3% EVM using 400MHz 5G-NR CP-OFDM waveform
