F5728

mmWave Up/Down-Converter 24.25GHz to 29.5GHz

联系销售人员

产品详情

特征
描述

RF 范围: 24.25GHz to 29.5GHz
IF 范围: 2GHz to 7GHz
Two integrated LO frequency doublers
Operating temperature (TA) 范围: -40°C to +105°C

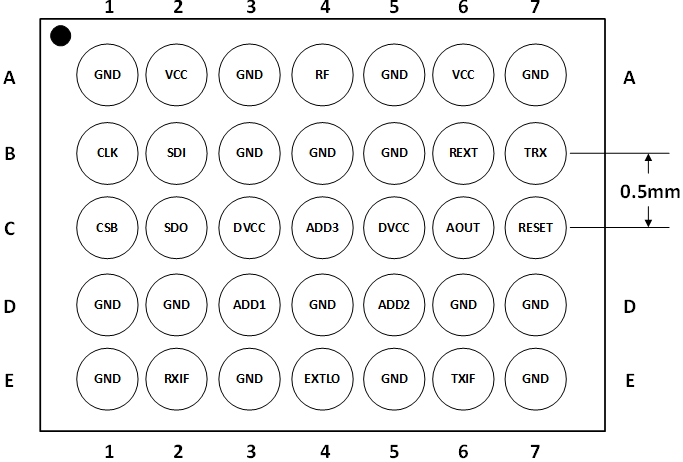

4.0 × 4.0 mm, 49-BGA package

RF 范围: 24.25GHz to 29.5GHz
IF 范围: 2GHz to 7GHz
Two integrated LO frequency doublers
Operating temperature (TA) 范围: -40°C to +105°C
4.0 × 4.0 mm, 49-BGA package

The F5728 is a 高ly integrated mmWave up/down-converter used in 5G beamforming 应用s targeting n257/n258/n261 bands. The device utilizes real-IF heterodyne architecture to convert 2GHz to 7GHz IF signals to the 5G NR FR-2 bands spanning the 24.25 GHz to 29.5 GHz spectrum. Low-side local oscillator (LO) injection is used for both bands. External LO feed requirements are eased by the device’s two sequential on-chip LO frequency doublers which yield net multiplication factors of either 2x or 4x. All RF, IF, and LO ports employ single-ended 50Ω impedances for ease of integration into the signal path.

The F5728 is controlled through an advanced 高-speed SPI protocol and packaged in 4.0 × 4.0 mm, 49-BGA package. It is rated for operation over the -40°C to 105°C temperature 范围.
