F6506

8-Channel, Dual-Polarization Tx Beamforming IC, K-Band SATCOM

产品详情

特征
描述
应用

19.7 – 22.7 GHz operation
8 radiation channels
360° phase control with 6-bit resolution
30.5dB gain control with 0.484dB minimum 步
30dB gain
16dBm output P1dB
2.5V nominal single supply input
Standard 1.8V digital logic
Integrated temperature sensor and power detector
Advanced digital modes with fast beam 方向盘
2048 on-chip programmable beam-状态 memory
-40 to +95°C operating temperature
Dedicated PA supply voltage +2.4V to 2.6V
5.1 × 5.1 × 0.8 mm 118-pin FCCSP package

19.7 – 22.7 GHz operation
8 radiation channels
360° phase control with 6-bit resolution
30.5dB gain control with 0.484dB minimum 步
30dB gain
16dBm output P1dB
2.5V nominal single supply input
Standard 1.8V digital logic
Integrated temperature sensor and power detector
Advanced digital modes with fast beam 方向盘
2048 on-chip programmable beam-状态 memory
-40 to +95°C operating temperature
Dedicated PA supply voltage +2.4V to 2.6V
5.1 × 5.1 × 0.8 mm 118-pin FCCSP package

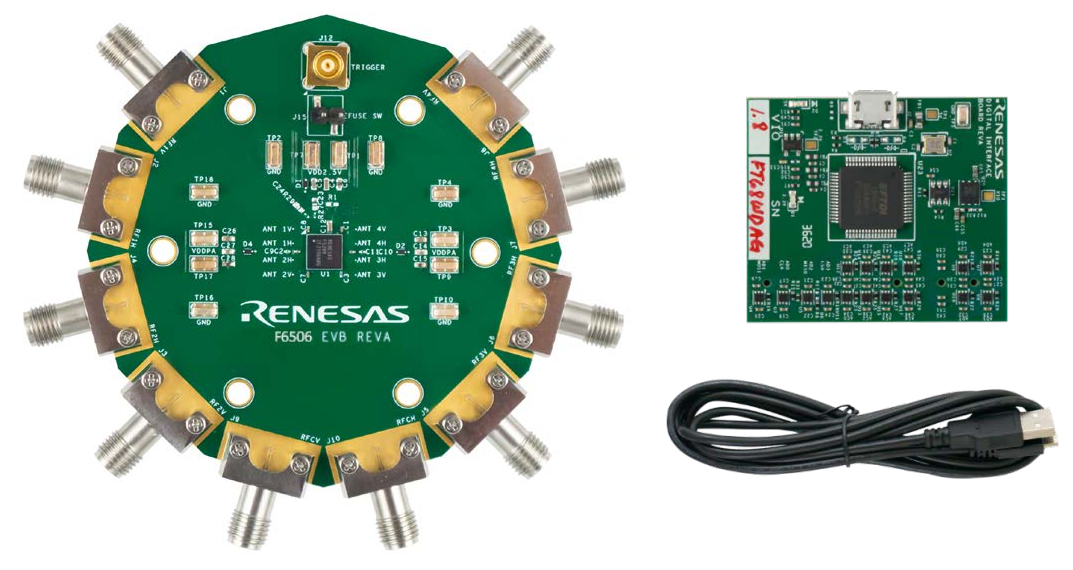

The F6506 is an 8-channel active beamforming IC (BFIC) designed for transmit (Tx) 应用s in K-band planar phased array antennas. In a typical configuration, eight output channels drive four dual-polarized antenna elements, while two common beam inputs allow for independent beam 方向盘 of vertical and horizontal polarizations.

Each channel of the IC has independent 6 bits of digital phase control covering 360° and 30.5dB of gain control with a 步 size of 0.484dB. Low RMS gain and phase errors enable precise amplitude and phase adjustment for gain compensation between channels and beam pattern control.

The F6506 SPI bus operates up to 65MHz and includes 特征 for fast beam coefficient loading and rapid array-level beam switching. Up to 16 devices can be 支持ed on the same SPI bus using dedicated address pins. The digital core and SPI use a 1.8V supply generated by an on-chip LDO.
