产品详情
- 650MHz to 1GHz operating 范围
- 18dB typical Gain
- Less than 0.6dB NF
- 50Ω single-ended input/output impedances
- +5V power supply
- ICC = 60mA per channel
- Independent channel standby modes for power savings
- 1.8V Logic standby control
- Operating temperature (TEP) 范围: -40 °C to +105 °C

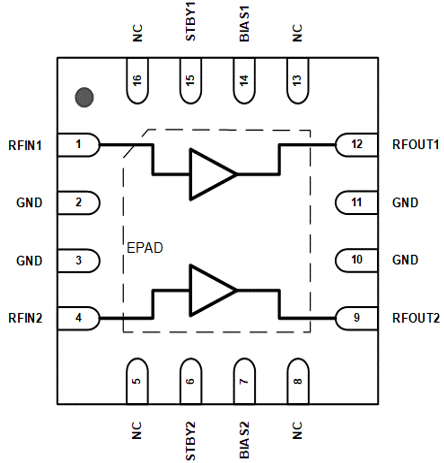

- 4mm x 4mm, 16-VFQFPN package
The F0109 is a dual path 650MHz to 1GHz 高 gain / ultra-low noise amplifier used in receiver 应用s.
The F0109 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain. The device uses a single 5V supply and 120mA typical of total ICC.
The F0109 is packaged in a 4mm x 4mm, 16-pin VFQFPN with 50Ω single-ended RF input and output impedances for ease of integration into the signal path.
- 3G, 4G, 5G wireless 基础设施
- Public safety 基础设施
- General purpose RF
