产品详情
- Frequency: 10.7GHz – 12.75GHz
- 获得: 24dB
- Noise Figure: 1.1dB
- Output P1dB: -1dBm
- Power consumption: 11.4mW/ch
- 电源电压: 1.2V nominal
- Compact size for planar integration on ?/2 grid
- 2.7 × 2.7 × 0.9 mm, 23-pin BGA
- -40°C to +85°C ambient operating temperature 范围
The F6931 is an ultra-low power consumption, dual-channel, silicon on insulator (SOI) low noise amplifier (LNA) RFIC designed for 应用 in Ku?Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, 高 获得, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.
The F6931 includes two LNA channels in a compact 23-pin, 0.5mm pitch BGA 包裹. All inputs and outputs are single-ended and 50? matched for ease of integration onto phased array antenna panels.
- Ku-Band Satellite Communication System
- Satellite Communications
Design & Development (Boards and Kit)

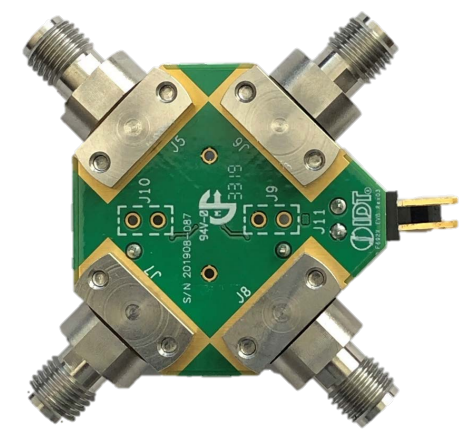

F6931 Dual-Channel Low Noise Amplifier for Ku-Band SATCOM Evaluation Board
The Renesas F6931EVB evaluation board is designed to reduce the learning cycle, build system-level confidence, and enable a rapid time to market using the F6931 low noise amplifier (LNA) RFIC. The kit includes all the essential components required for the rapid validation and evaluation of the electrical performance characteristics of the F6931 dual-channel LNA. The board provides access to all pins and 功能ality to enable full evaluation and validation.
部件号 (3)
RA81F6931GBX#BC0
RA81F6931GBX#HC0
RTKA81F6931000RU
