F1100

产品详情

特征
描述

Dual path for diversity systems
Ideal for multi-carrier systems
MIMO friendly: -6dBm min LO drive
9dB 获得
Ultra-linear: +41dBm IP3_O (350MHz IF)
Low NF ~10dB
200Ω 输出阻抗
Ultra-高 +13dBm P1dB_I
Pin-compatible with existing solutions

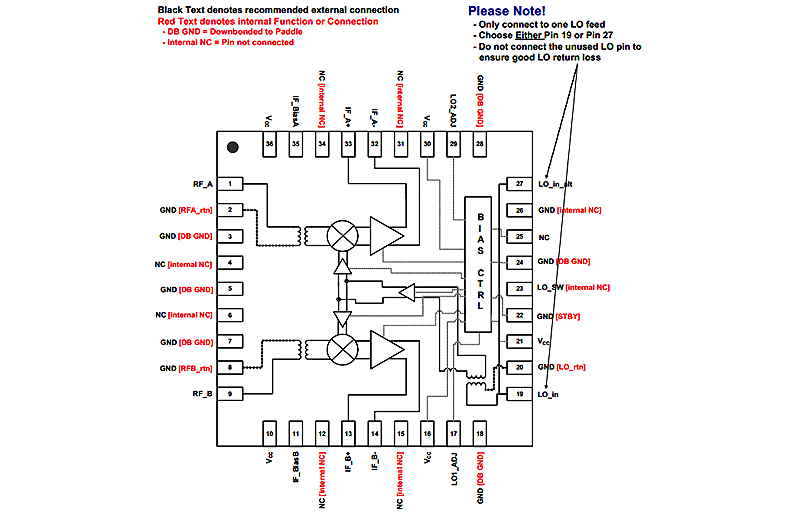

6mm x 6mm 36-pin 包裹
Power Down mode
Standard mode: I_CC = 350mA

Dual path for diversity systems
Ideal for multi-carrier systems
MIMO friendly: -6dBm min LO drive
9dB 获得
Ultra-linear: +41dBm IP3_O (350MHz IF)
Low NF ~10dB
200Ω 输出阻抗
Ultra-高 +13dBm P1dB_I
Pin-compatible with existing solutions
6mm x 6mm 36-pin 包裹
Power Down mode
Standard mode: I_CC = 350mA

This device is part of a series of downconverting mixers covering all Universal Terrestrial 无线电接入 (UTRA) bands. The F1100 dual-channel device operates with a single 5V supply. It is optimized for operation in a multi-carrier base station receiver for RF bands from 698MHz to 915MHz with 高-side injection. IF frequencies from 150MHz to 450MHz are 支持ed. Nominally, the device offers +41dBm 输出IP3 with 350mA of I_CC.

A member of the Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.

产品文档

类型

姓名

日期

动作

数据表

F1100 数据表

pdf | 1.54 MB

2025-09-23

Product Change Notice

PCN# : A1406-01 Alternate Assembly 地点s for 选择ive 包裹

pdf | 33.74 KB

2025-09-23

Product Change Notice

PCN# : A1406-01R1 Add Alternate Assembly

pdf | 35.12 KB

2025-09-23

Product Change Notice

PCN# : Q1512-01 数据表 up日期 for F1100NBGI(8)

pdf | 22.26 KB

2025-09-23

Product Change Notice

PCN# : TB1602-01 Alternate Test 地点 for 选择 Devices

pdf | 39.63 KB

2025-09-23

Product Brief

RF Mixer Family

pdf | 1.12 MB

2025-09-23

Product Change Notice

PCN# : 240008 Add alternate assembly 地点s on 选择 VFQFPN 包裹s

pdf | 0 Bytes

2025-09-23

数据表

2025-09-23

F1100 数据表

pdf | 1.54 MB

Product Change Notice

2025-09-23

PCN# : A1406-01 Alternate Assembly 地点s for 选择ive 包裹

pdf | 33.74 KB

Product Change Notice

2025-09-23

PCN# : A1406-01R1 Add Alternate Assembly

pdf | 35.12 KB

Product Change Notice

2025-09-23

PCN# : Q1512-01 数据表 up日期 for F1100NBGI(8)

pdf | 22.26 KB

Product Change Notice

2025-09-23

PCN# : TB1602-01 Alternate Test 地点 for 选择 Devices

pdf | 39.63 KB

Product Brief

2025-09-23

RF Mixer Family

pdf | 1.12 MB

Product Change Notice

2025-09-23

PCN# : 240008 Add alternate assembly 地点s on 选择 VFQFPN 包裹s

pdf | 0 Bytes

部件号s (2)	地位 P4A	包裹 VFQFPN	Lead Count 36	Carrier 类型 Tray Reel	Moisture Sensitivity Level 1	Qty. per Reel 0 2500	Qty. per Carrier 490 0	Pb (Lead) Free Yes	Pb Free Category e3 Sn	Temp. Rang
F1100NBGI	P4A	VFQFPN	36	Tray	1	0	490	Yes	e3 Sn	-40 to +85°C
F1100NBGI8	P4A	VFQFPN	36	Reel	1	2500	0	Yes	e3 Sn	-40 to +85°C
