F2950

高 Linearity Broadband SP2T WiFi 100MHz to 8GHz RF Switch

数据表 联系销售人员

产品详情

0
0thubnail
  • Low insertion loss: 0.58dB at 2.5GHz
  • 高 isolation: 44dB at 2.5GHz
  • Excellent linearity:
    •    IIP3 +69dBm at 2.4GHz and 5.9GHz
    •    IIP2 +115dBm at 2.4GHz
    •    IIP2 +117dBm at 5.9GHz
  • Second harmonic: -93dBc at 5.9GHz
  • Third harmonic: -85dBc at 5.9GHz
  • Typical switching speed: 170ns
  • Supply voltage: +2.7V to +5.5V
  • 1.8V and 3.3V compatible control logic
  • -40 °C to +105 °C operating temperature 范围

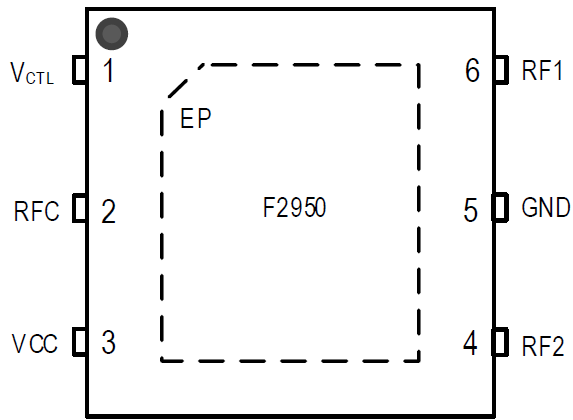

  • 1.5mm x 1.5mm, 6-DFN package

The F2950 is a reflective 50Ω single-pole double-throw (SP2T) RF switch optimized for Wi-Fi 应用s. This device covers a 100MHz to 8GHz frequency 范围 to 支持 WLAN 802.11 应用s.

产品文档

数据表

2025-07-10

F2950 数据表

pdf | 5.74 MB
Model - S-parameter

2025-07-10

F2950 S-Parameters

zip | 446.5 KB
Product Change Notice

2025-07-10

PCN# : 220008 Metal Change and Fab Location Transfer

pdf | 0 Bytes
帮助
Filters
to

部件号s (2)

F2950NEGK

查看 数据表
查看 Block Diagram
查看 细节

F2950NEGK8

查看 数据表
查看 Block Diagram
查看 细节
