产品详情
- Dual Path RF amp and DSAs for diversity/MIMO receivers
- RF: 400MHz to 2700MHz
- < 2dB overshoot between DSA transitions
- 11.6dB typical max gain at 900MHz
- DSA0 is a single 6dB coarse 步
- DSA1 has 23dB total gain 范围 in 1dB 步s
- DSA2 has 18dB gain 范围 in 6dB 步s
- +41dBm OIP3 at 2000MHz
- 4.7dB Noise Figure at 900MHz
- +5V supply voltage
- ICC = 245mA
- Independent standby: 7mA standby current
- SPI interface for DSA1
- 1-bit control for DSA0
- -bit control for DSA2
- 50Ω input and output impedance
- Broadband, internally matched
- 6mm x 6mm, 36-pin TQFN package
The F0440 400MHz to 2700MHz dual RF digital variable gain amplifier (DVGA) is designed for use in receivers. The device provides two independent receiver paths each with 11.6dB typical maximum gain and 4.7dB noise figure in the low-band configuration designed to operate with a single +5V supply. For each path Gain control is split into three separate attenuators; DSA0 is a single 6dB 步 using a single control pin, DSA1 includes 23dB SPI-controlled gain adjustment in 1dB 步s, and DSA2 includes 18dB attenuation in 6dB 步s controlled using two control pins. F0440 offers +40dBm nominal output IP3 using 245mA total ICC.
This device is packaged in a 6mm x 6 mm, 36-pin TQFN with 50Ω single-ended RF input and RF output impedances for ease of integration into the signal-path lineup for each of the two paths.
- Multi-mode/Multi-carrier receivers
- PCS1900 base stations
- DCS1800 base stations
- WiMAX and LTE base stations
- UMTS/WCDMA 3G base stations
- PHS/PAS base stations
- Distributed antenna systems
- Digital radio

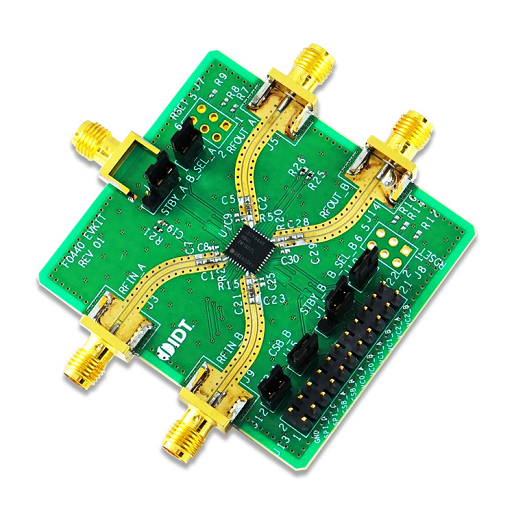

.png)
