Dual Path RF Switch / LNA DVGA - 2.3GHz to 2.7GHz

产品详情

0
0thubnail
  • Gain at 2.6GHz
    • 34dB typical in 高 Gain Mode
    • 28dB typical in Low Gain Mode
  • 1.6dB NF at 2.6GHz
  • +23dBm OIP3 at 2.6GHz
  • OP1dB at 2.6GHz
    • +15dBm in 高 Gain Mode
    • +14dBm in Low Gain Mode
  • 50Ω single-ended input/output amplifier impedances
  • IDD = 130mA
  • Independent Standby Mode for power savings
  • Supply voltage: +3.15V to +3.45V
  • 6mm × 6 mm, 32-pin LGA package
  • -40 °C to +105 °C exposed pad operating temperature 范围

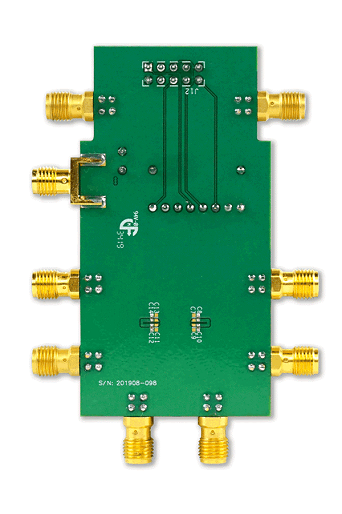

The F0452C is an integrated dual-path RF front-end consisting of an RF switch and two gain stages with 6dB gain control used in the analog front-end receiver of an Active Antenna System (AAS).

The F0452C provides 34dB gain with +23dBm OIP3, +15dBm output P1dB, and 1.6dB noise figure (NF) at 2.6GHz. Gain is reduced 6dB in a single 步 with a maximum gain settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD.

The F0452C is offered in a 6mm × 6mm × 0.8 mm, 32-pin LGA package with 50Ω input and output amplifier impedances for ease of integration into the signal path.
