产品详情
- 22dB GMAX
- 23dB gain control 范围
- 7-bit parallel control
- 0.25dB gain 步s
- Excellent noise figure < 3.0dB

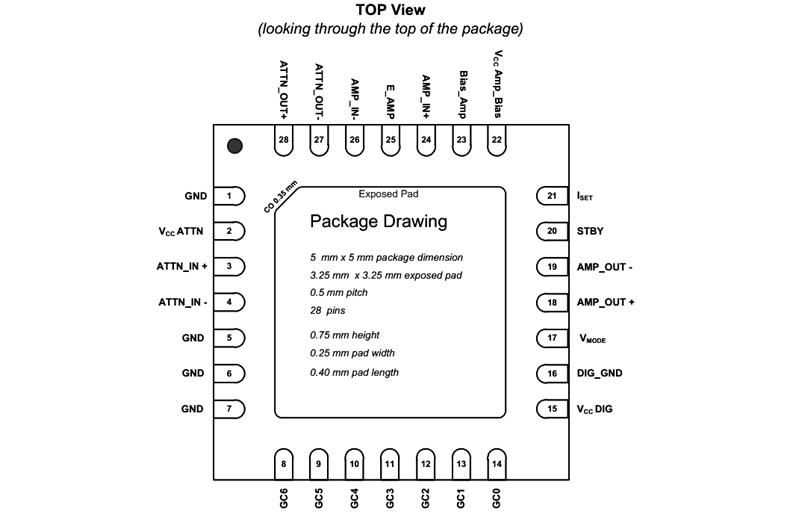

- 5mm x 5mm 28-pin package
- 200Ω differential input
- 200Ω differential output
- NF degrades < 2dB at 12dB reduced gain
- 30MHz to 150MHz frequency 范围 (for low distortion)
- Ultra-linear: IP3O +48 dBm typical
- External current setting resistor
- Fast gain 步 settling < 20nsec
The F1200 low-noise digital IF variable gain amplifiers (VGA) featuring FlatNoise™ technology is ideal for commercial radio systems with very 高 SNR requirements. Its extremely low distortion makes the device very flexible, while the 200Ω differential input and output impedances allow it to integrate seamlessly into the signal path.
