F2913EVBI

Evaluation Board for F2913 High Isolation SPDT Absorptive Switch

Product Details

Description

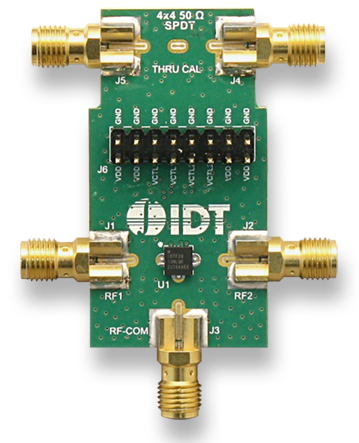

The F2913EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product.

“Thru” calibration connectors are conveniently located on the evaluation board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.

Product Documents

Type

Name

Date

Actions

Datasheet

F2913 Datasheet

pdf | 997.37 KB

2025-06-19

Datasheet

2025-06-19

F2913 Datasheet

pdf | 997.37 KB

Part Numbers (1)

F2913EVBI

Status

P4A

Package

BOARD

Lead Count

Carrier Type

Box

Moisture Sensitivity Level

Qty. per Reel

Qty. per Carrier

Pb (Lead) Free

Pb Free Category

Temp. Rang

-40 to +85°C

Price (USD) | 1ku

248.75

View Datasheet

View Details

Product Options

Help

Full screen

Part Numbers (1)	Status P4A	Package BOARD	Lead Count 0	Carrier Type Box	Moisture Sensitivity Level 1	Qty. per Reel 0	Qty. per Carrier 0	Pb (Lead) Free No	Pb Free Category e0
F2913EVBI	P4A	BOARD	0	Box	1	0	0	No	e0
