F2933EVBI

Evaluation Board for High Reliability SPDT Absorptive RF Switch

Product Details

Description

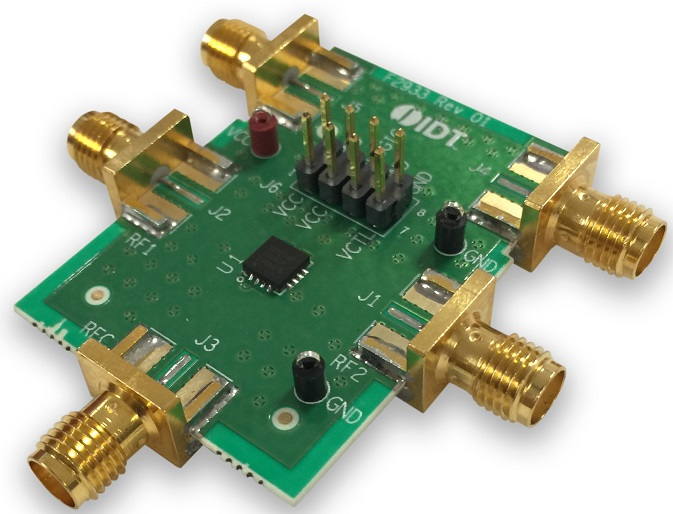

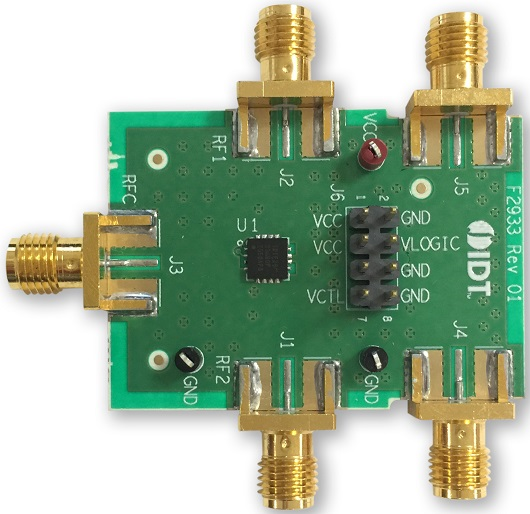

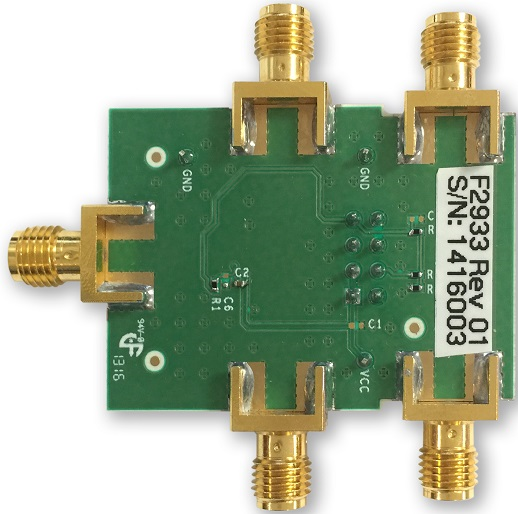

The F2933EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2933 RF switch.

“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RF1 and RF2) can be connected to RFC by applying the correct control logic voltage to the VCTL control pin as outlined in the F2933 datasheet.

Product Documents

Type

Name

Date

Actions

Datasheet

F2933 Datasheet REVO

pdf | 3.99 MB

2025-07-13

Datasheet

2025-07-13

F2933 Datasheet REVO

pdf | 3.99 MB

Part Numbers (1)

F2933EVBI

Status

P4A

Package

BOARD

Lead Count

Carrier Type

Box

Moisture Sensitivity Level

Qty. per Reel

Qty. per Carrier

Pb (Lead) Free

Pb Free Category

Temp. Rang

-40 to +85°C

Price (USD) | 1ku

0.00

View Datasheet

View Details

Product Options

Help

Full screen

Part Numbers (1)	Status P4A	Package BOARD	Lead Count 0	Carrier Type Box	Moisture Sensitivity Level 1	Qty. per Reel 0	Qty. per Carrier 0	Pb (Lead) Free No	Pb Free Category e0
F2933EVBI	P4A	BOARD	0	Box	1	0	0	No	e0
