Product Details
- Six 13-bit DAC output channels
- Selectable range:
1) -10V to 0V (GaN applications)
2) 0 to 5V (LDMOS applications)
- High current capability:
1) Sourcing: up to 100mA
2) Sinking: up to 30mA
- Auto-range detector
- Selectable clamp voltage
- Output On/Off control
- Switching delay TSW 500ns (max)
- Switch Ron 1.5Ω (typical)
- 12-bit SAR ADC
- 1 remote temperature sensing input
- Out of range alarm
- Internal temperature sensor, Accuracy: -40°C to 125°C, ±3.5°C
- Configurable I3C basic/I2C and SPI interface
- Absolute maximum junction temperature: -40°C to +150°C
- Specification temperature (Exposed pad): -40°C to +125°C

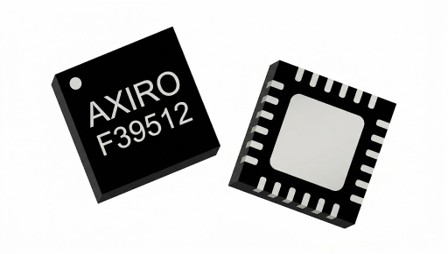

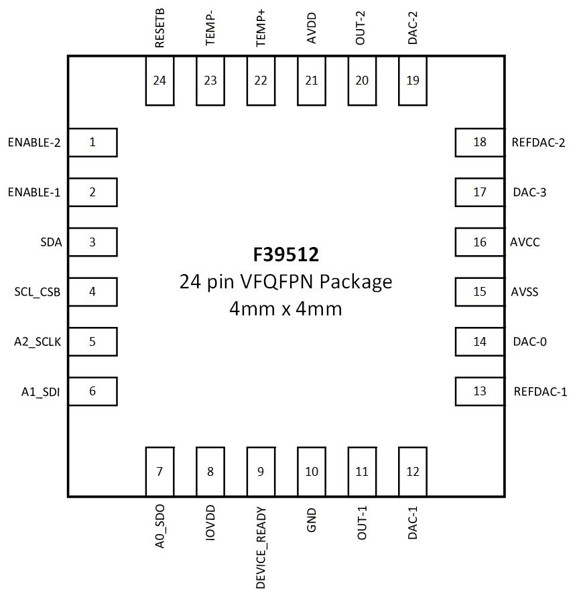

- 4 × 4 mm 24-VFQFPN package

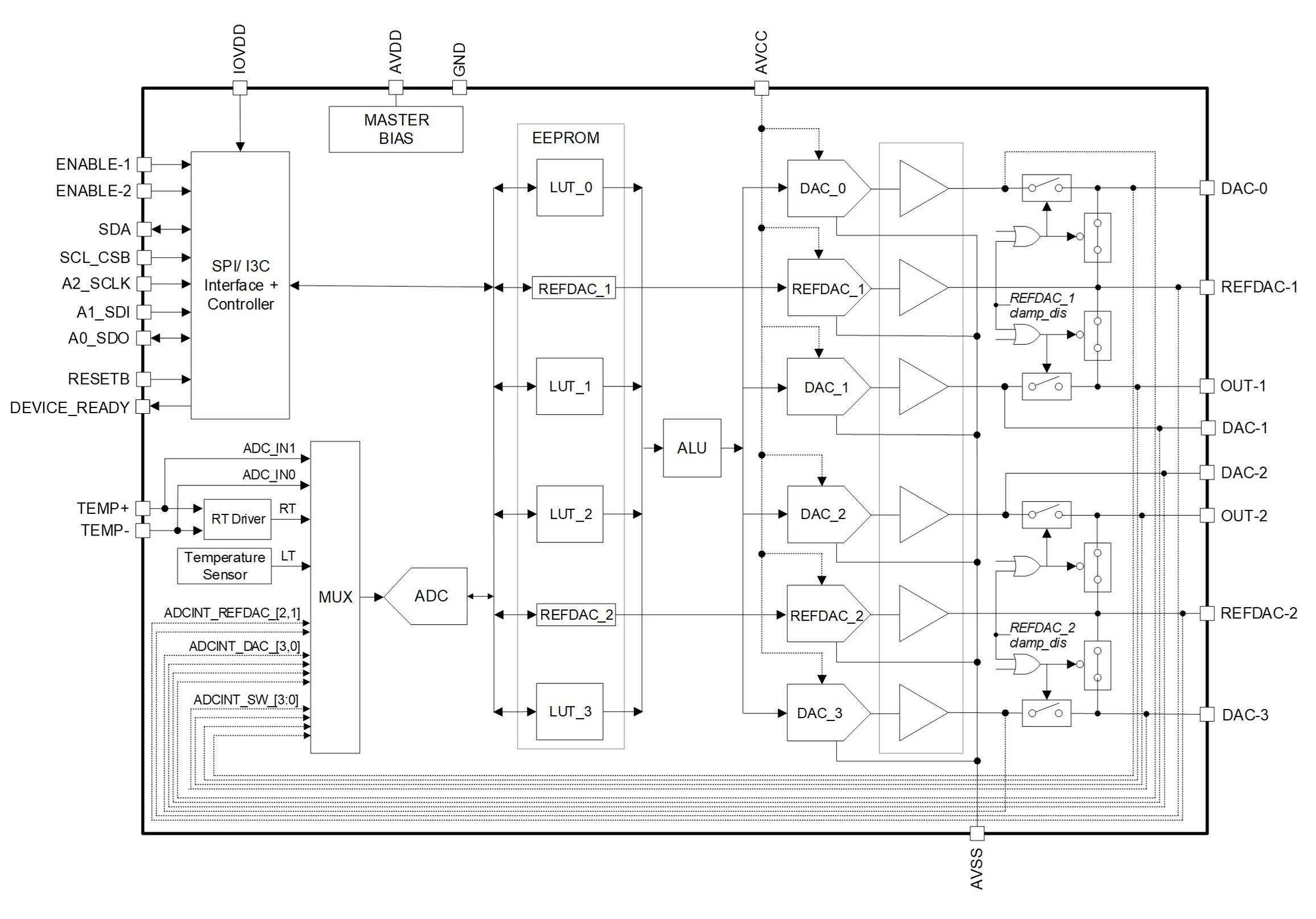

The F39512 is a precise, temperature-stable bias controller for RF power amplifier (PA) applications. The F39512 features six 13-bit DACs with two auxiliary DACs providing a programmable clamp voltage, one -40°C to 150°C internal temperature sensor, and one 12-bit ADC for internal and remote temperature supervision of an RF power amplifier
Competitive Advantages
-Precise programmable bias generation
- Wide operating temperature range
- High Sourcing and Sinking DAC output current
Part Number (4)
RRF39512-B00
RRF39512-K00
RTKRF39512-000
F39512
