Product Details
- Dual Path for Diversity Systems
- 1700 to 2200 MHz freq range
- Ideal for Multi-Carrier Systems
- 8.5 dB Gain (200 MHz IF)
- Ultra linear +38 dBm IP3O (350 MHz IF)
- Ultra linear +40 dBm IP3O (200 MHz IF)
- Low NF < 10 dB
- 200 ohm output impedance
- Ultra high +13 dBm P1dBI
- Drop in replacement for existing radiocards

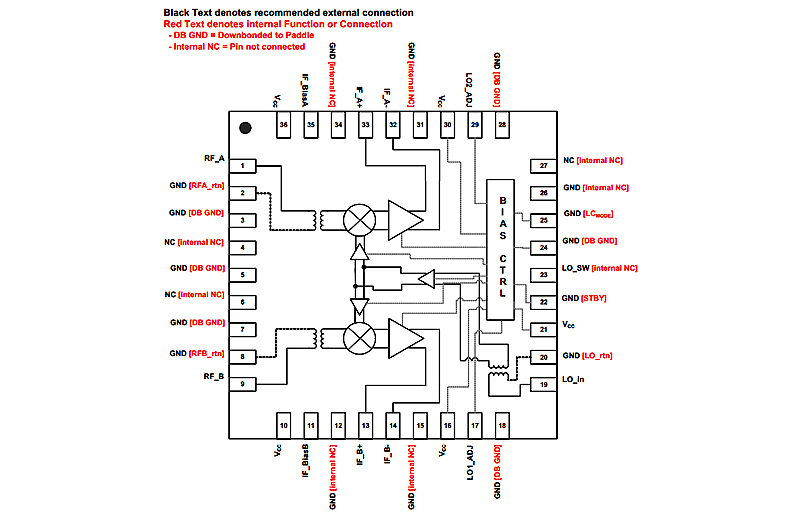

- 6x6 mm 36 pin package
- Power Down mode
- < 200 nsec settling from Power Down
- Minimizes Synth pulling in Standby Mode
- Low Current Mode : ICC = 235 mA
- Standard Mode: ICC = 335 mA
- Optimized for High Side Injection
The IDT F1150 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-mode, Multi-carrier BaseStation Receiver for RF bands from 1700 - 2200 MHz with High Side Injection. IF frequencies from 50 to 450 MHz are supported. Nominally, the device offers +40 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +36 dBm Output IP3 and 235 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
Part Numbers (2)
F1150NBGI
F1150NBGI8
