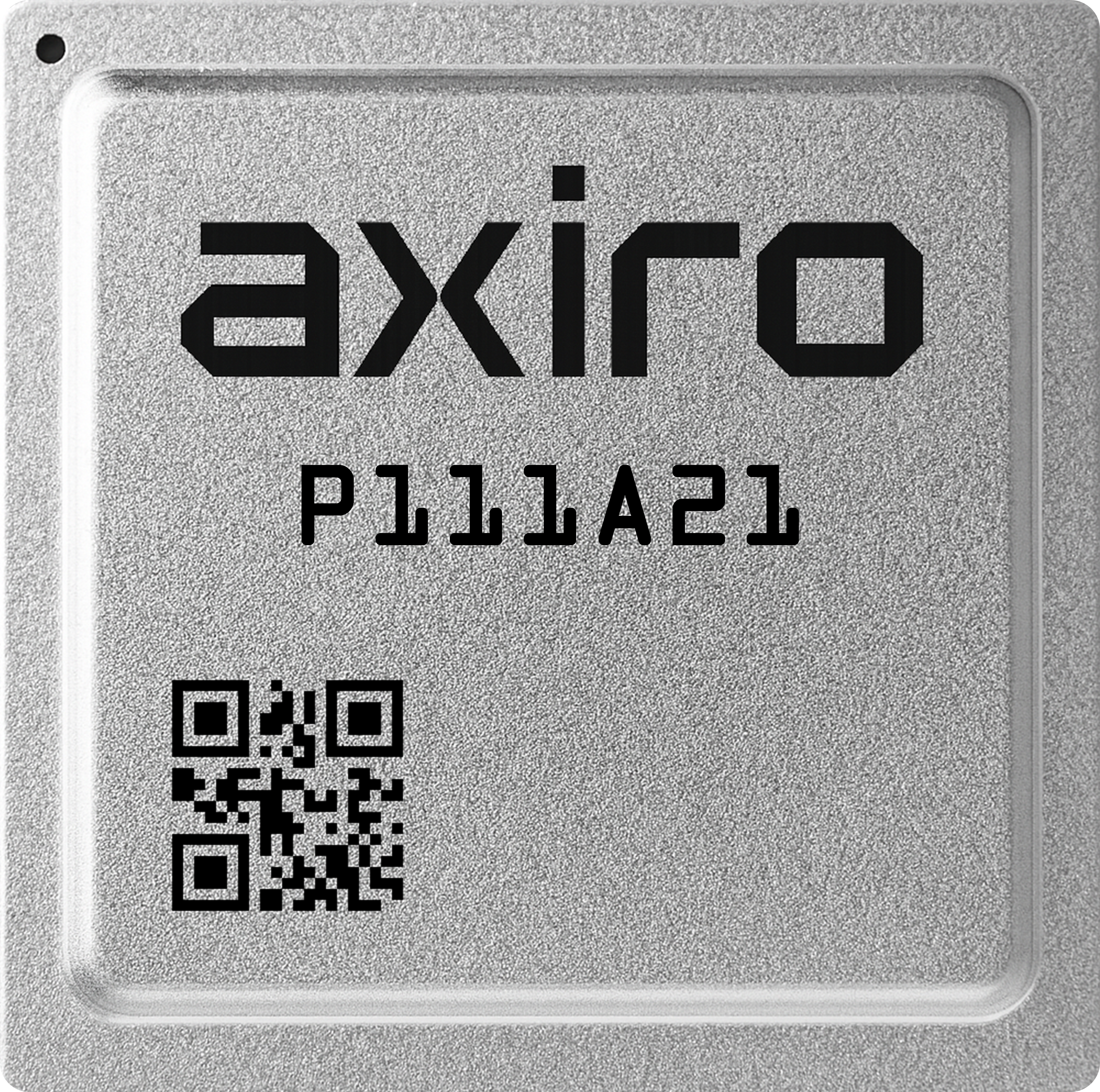

AX110

Name: P111A21
Brand: Axiro
SKU: SKU12345
Availability: InStock

P111A21

联系销售人员

产品详情

特征
描述
应用

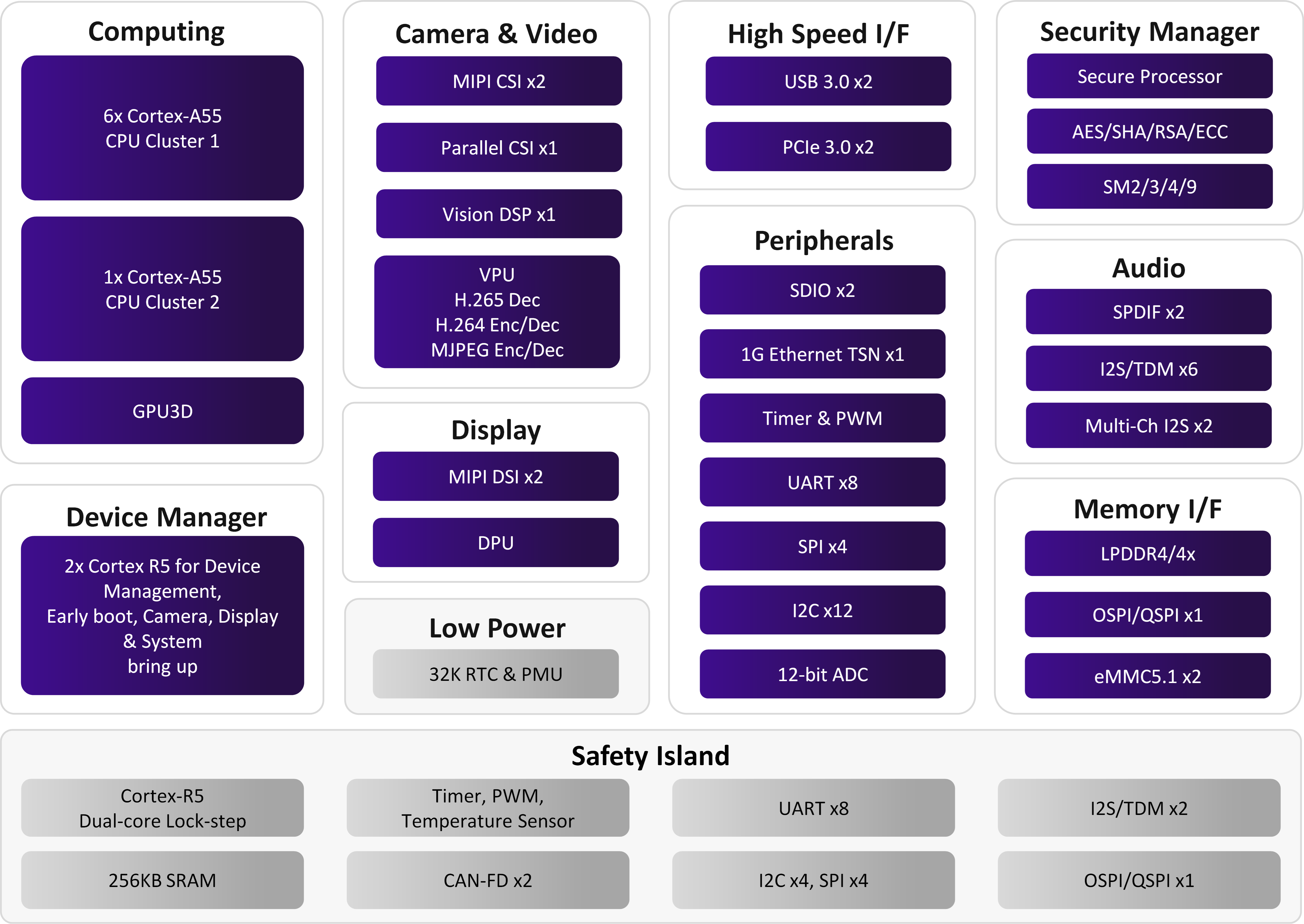

6x Cortex-A55 CPUs operating at up to 2.0GHz in the primary cluster.
1x additional Cortex-A55 CPU operating at 1.4GHz in a secondary cluster.
32KB/32KB L1 instruction/data cache per A55 core with 128KB L2 cache per core and 1MB L3 cache for the primary cluster.
IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering.
Dedicated AI accelerator with TensorFlow and Caffe framework 支持.
Dedicated secure processor based on Cortex-R5 in DCLS mode.
Dedicated multi-purpose processor based on Cortex-R5 in DCLS mode.
Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode.
2x 4-lane MIPI-DSI interfaces and 4x LVDS display interfaces.
2x 4-lane MIPI-CSI interfaces with 支持 for 4 virtual channels.
1x 8-bit parallel CSI interface for additional image sensor flexibility.
H.264 video encode/decode 支持.
H.265 / VP8 / VP9 video decode 支持.
32-bit DRAM interface up to 4267MT/s.
LPDDR4 / LPDDR4x / DDR4 memory 支持 with optional inline ECC.
2x USB 3.0 and 2x PCIe 3.0 dual-role RC/EP interfaces.
2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces.
1x Gigabit Ethernet TSN plus 2x CAN-FD in the safety domain for 汽车 networking and control.
RTC, power/reset control, 2048-bit secure storage register
ADC, audio interfaces, and extensive peripherals including SPI, UART, I2C, GPIO, PWM, watchdog, timer, and temperature sensor
汽车 AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1

6x Cortex-A55 CPUs operating at up to 2.0GHz in the primary cluster.
1x additional Cortex-A55 CPU operating at 1.4GHz in a secondary cluster.
32KB/32KB L1 instruction/data cache per A55 core with 128KB L2 cache per core and 1MB L3 cache for the primary cluster.
IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering.
Dedicated AI accelerator with TensorFlow and Caffe framework 支持.
Dedicated secure processor based on Cortex-R5 in DCLS mode.
Dedicated multi-purpose processor based on Cortex-R5 in DCLS mode.
Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode.
2x 4-lane MIPI-DSI interfaces and 4x LVDS display interfaces.
2x 4-lane MIPI-CSI interfaces with 支持 for 4 virtual channels.
1x 8-bit parallel CSI interface for additional image sensor flexibility.
H.264 video encode/decode 支持.
H.265 / VP8 / VP9 video decode 支持.
32-bit DRAM interface up to 4267MT/s.
LPDDR4 / LPDDR4x / DDR4 memory 支持 with optional inline ECC.
2x USB 3.0 and 2x PCIe 3.0 dual-role RC/EP interfaces.
2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces.
1x Gigabit Ethernet TSN plus 2x CAN-FD in the safety domain for 汽车 networking and control.
RTC, power/reset control, 2048-bit secure storage register
ADC, audio interfaces, and extensive peripherals including SPI, UART, I2C, GPIO, PWM, watchdog, timer, and temperature sensor
汽车 AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1

AX110 is a 高-performance 汽车应用s processor built to 帮助 OEMs and Tier 1s deliver 下一个-generation eCockpit platforms with 50 K DMIPS of CPU compute, 140 GFLOPS of GPU performance and 0.4 TOPS of NPU. By combining strong 应用 performance, rich graphics capability, AI acceleration, flexible connectivity, and integrated safety 支持 and integrated multi-domain 建筑学帮助s simplify system design, reduce platform complexity, and provide a scalable foundation for modern cockpit systems that demand both user experience and safety-oriented reliability.

AX110 — Consoli日期d E-Cockpit Domain Control

Accelerate the transition to centralized vehicle 建筑学s with the Axiro AX110, a powerful single-chip platform for advanced E-座舱域控制器s. Its hardware-isolated 建筑学支持s the secure consolidation of digital instrumentation, infotainment, and 其他 mixed-criticality cockpit workloads without relying on a software hypervisor. 高-performance graphics and video processing enable immersive 3D HMIs and as many as four 高-definition, 高-frame-rate displays, while integrated AI acceleration 支持s intelligent voice, driver monitoring and occupant monitoring. With secure display capabilities, real-time processing resources, and 汽车功能al-safety 支持, AX110 帮助s automakers reduce ECU count and system complexity while delivering sophisticated multi-display cockpits for upper-mainstream and premium vehicles.

产品文档

类型

姓名

日期

动作

PDF

AX110-Product-Brief

pdf | 397 KB

2026-08-18

数据表

AX110-数据表.pdf

| 44 KB

2026-08-18

PDF

2026-08-18

AX110-Product-Brief

pdf | 397 KB

数据表

2026-08-18

AX110-数据表.pdf

| 44 KB

帮助

Filters

部件号 (1)

P111A21

地位

Primary 应用 CPU

6× Cortex-A55 @ 2.0 GHz

Primary 应用 CPU cache

32 KB I-cache + 32 KB D-cache per core; 128 KB L2 per core; 1 MB L3

Secondary 应用 CPU

1× Cortex-A55 @ 1.4 GHz

Secondary 应用 CPU cache

32 KB I-cache + 32 KB D-cache; 128 KB L2

GPU

IMG PowerVR 9XM GPU

AI / ML acceleration

高-efficiency AI accelerator; 支持s TensorFlow/Caffe

ISP / vision processing

Video encode/decode

H.264 encode/decode; H.265, VP8, VP9 decode

Display interfaces

2× 4-lane MIPI-DSI; 4× LVDS

Camera interfaces

2× 4-lane MIPI-CSI with 4 virtual channels; 1× 8-bit Parallel CSI

应用 SRAM

768 KB system RAM

External DRAM interface

32-bit DRAM interface @ 4267 MT/s; LPDDR4/LPDDR4x; DDR4; optional inline ECC

高-speed interfaces

2× USB 3.0; 2× PCIe 3.0 RC/EP dual-role

Ethernet

1× Gigabit Ethernet TSN

Storage interfaces

2× eMMC 5.1; 2× SD 3.0/SDIO; 1× QuadSPI/OctalSPI

Audio interfaces — 应用 domain

4× SPDIF; 6× single-channel I2S/TDM; 2× multi-channel I2S

ADC

12-bit SAR ADC, 5 MS/s; 4 analog input channels

General peripherals — 应用 domain

4× SPI; 8× UART; 12× I2C; GPIO; PWM; watchdog; timer

Secure processor / HSM

Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM

Multi-purpose processor

Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM

Safety island CPU

Cortex-R5F @ 800 MHz in DCLS mode

Safety island memory

256 KB system RAM; 128 KB ROM; all memory with ECC

Safety island interfaces / peripherals

1× QuadSPI/OctalSPI; 2× single-channel I2S/TDM; 2× CAN-FD; 4× SPI; 8× UART; 4× I2C; GPIO; PWM; temperature sensor; watchdog; timer

Low-power / RTC domain

32 kHz oscillator; real-time clock; system power and reset control; 2048-bit secure storage register

包裹

21 × 21 FCBGA

Junction temperature

-40 to 125°C Tj

汽车 qualification / ESD

AEC-Q100 Grade 2, -40 to 105°C; HBM ESD Level 2; CDM ESD Level C1

查看细节

产品选项

帮助

全屏

部件号 (1)	地位	Primary 应用 CPU	Primary 应用 CPU cache	Secondary 应用 CPU	Secondary 应用 CPU cache	GPU	AI / ML acceleration	ISP / vision processing	Video encode/decode	Display interfaces	Camera interfaces	应用 SRAM	External DRAM interface	高-speed interfaces	Ethernet	Storage interfaces	Audio interfaces — 应用 domain	ADC	General peripherals — 应用 domain	Secure processor / HSM	Multi-purpose processor	Safety island CPU	Safety island memory	Safety island interfaces / peripherals	Low-power / RTC domain	包裹	Junction temperature	汽车 qualification / ESD
P111A21	-	6× Cortex-A55 @ 2.0 GHz	32 KB I-cache + 32 KB D-cache per core; 128 KB L2 per core; 1 MB L3	1× Cortex-A55 @ 1.4 GHz	32 KB I-cache + 32 KB D-cache; 128 KB L2	IMG PowerVR 9XM GPU	高-efficiency AI accelerator; 支持s TensorFlow/Caffe	-	H.264 encode/decode; H.265, VP8, VP9 decode	2× 4-lane MIPI-DSI; 4× LVDS	2× 4-lane MIPI-CSI with 4 virtual channels; 1× 8-bit Parallel CSI	768 KB system RAM	32-bit DRAM interface @ 4267 MT/s; LPDDR4/LPDDR4x; DDR4; optional inline ECC	2× USB 3.0; 2× PCIe 3.0 RC/EP dual-role	1× Gigabit Ethernet TSN	2× eMMC 5.1; 2× SD 3.0/SDIO; 1× QuadSPI/OctalSPI	4× SPDIF; 6× single-channel I2S/TDM; 2× multi-channel I2S	12-bit SAR ADC, 5 MS/s; 4 analog input channels	4× SPI; 8× UART; 12× I2C; GPIO; PWM; watchdog; timer	Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM	Cortex-R5 in DCLS mode; 32 KB I-cache + 32 KB D-cache; 128 KB TCM	Cortex-R5F @ 800 MHz in DCLS mode	256 KB system RAM; 128 KB ROM; all memory with ECC	1× QuadSPI/OctalSPI; 2× single-channel I2S/TDM; 2× CAN-FD; 4× SPI; 8× UART; 4× I2C; GPIO; PWM; temperature sensor; watchdog; timer	32 kHz oscillator; real-time clock; system power and reset control; 2048-bit secure storage register	21 × 21 FCBGA	-40 to 125°C Tj	AEC-Q100 Grade 2, -40 to 105°C; HBM ESD Level 2; CDM ESD Level C1
