F1423

Differential Input, Single-ended Output Amplifier

产品详情

0
0thubnail
  • Broadband 600MHz to 3000MHz
  • 13.1dB typical gain at 2000MHz
  • 5.1dBNF at 2000MHz
  • +41.8dBm OIP3 at 2000MHz
  • +21.5dBm output P1dB at 2000MHz
  • Single 5V supply voltage
  • ICC = 120mA
  • Up to +105 °C TCASE operating temperature
  • 50Ω differential input impedance
  • 50Ω single-ended output impedance
  • Positive gain slope for board loss compensation
  • Standby mode for power savings

The F1423 RF amplifier provides 13.1dB gain with +41.8dBm OIP3 and 5.1dB noise figure at 2000MHz. This device uses a single 5V supply and 120mA of ICC. The F1423 is packaged in a 4mm x 4mm, 24-VFQFPN package with 50Ω differential RF input and 50Ω single-ended RF output impedances for ease of integration into the signal path.

  • Multi-mode, Multi-carrier Transmitters
  • GSM850/900 Base Stations
  • PCS1900 Base Stations
  • DCS1800 Base Stations
  • WiMAX and LTE Base Stations
  • UMTS/WCDMA 3G Base Stations
  • PHS/PAS Base Stations
  • Public Safety 基础设施

产品文档

数据表

2025-07-10

F1423 数据表 RevO

pdf | 4.64 MB
帮助
Filters
to

部件号s (2)

F1423NBGI

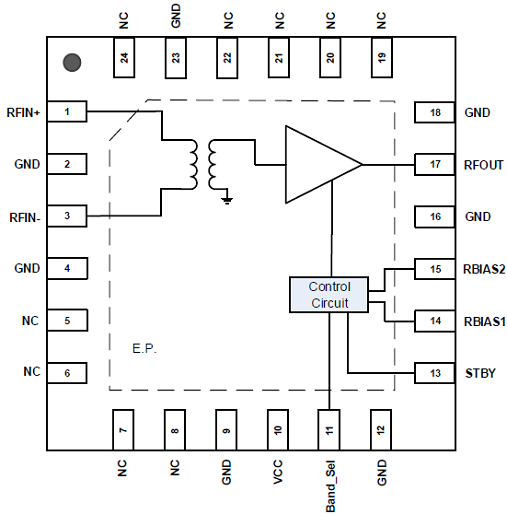

查看 Block Diagram
查看 细节

F1423NBGI8

查看 Block Diagram
查看 细节
