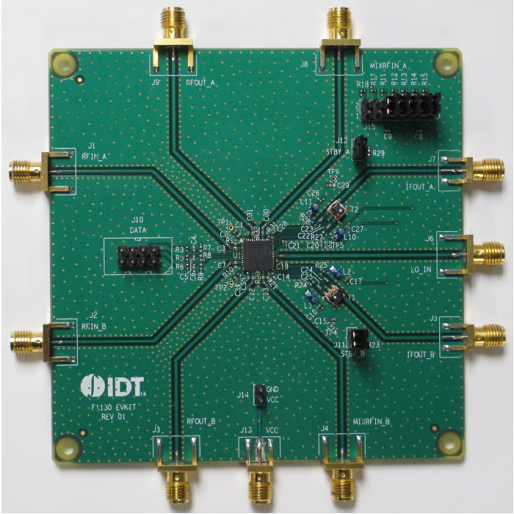

产品详情
- Dual path for MIMO systems
- RF: 1400MHz to 2700MHz
- LO: 1350MHz to 2900MHz
- IF: 25MHz to 400MHz
- Bypassable RF amplifiers for blockers
- 16.5dB RF front-end power gain
- +38dBm RF front-end OIP3 (Bypass OFF)
- +40dBm RF front-end OIP3 (Bypass ON)
- 3.5dB front-end NF at 2100MHz
- 8.2dB mixer power gain
- +35dBm mixer OIP3
- 30dB gain control 范围, 2dB 步s
- ICC = 365mA
- 7 × 7 mm 48-VFQFPN package

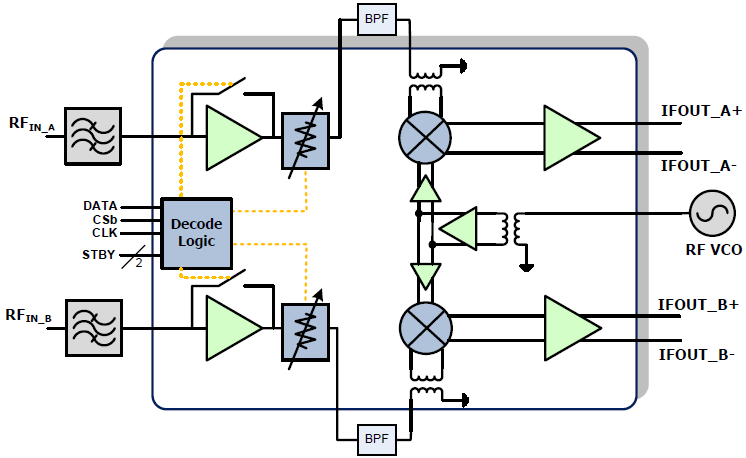

The F1180 RF front-end offers 16.5dB gain with 3.5dB NF and +38dBm OIP3 performance at 2100MHz. The digital 步 attenuator provides 30dB adjustment 范围 in 2dB 步s via the SPI interface controller. For strong signal conditions, each RF amplifier can be configured to be internally bypassed via the SPI interface. The RF front-end output and mixer input signals are bonded to separate pins to allow interstage
image-reject filtering.

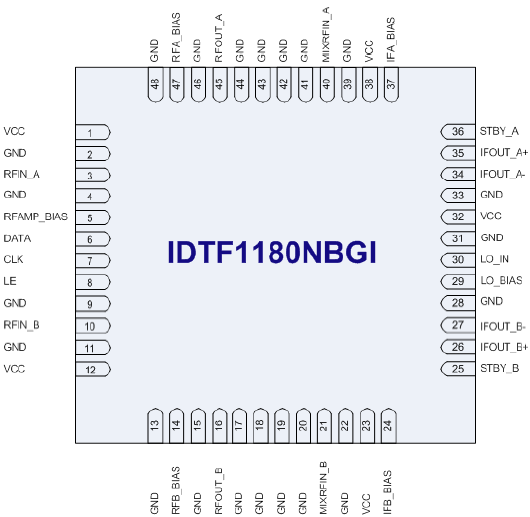

Each of the dual mixer paths provide 8.2dB power gain, 10.5dB NF and +35dBm OIP3 performance. An external LO signal is applied to the mixer LO port. This device is packaged in a 7 × 7 mm 48-VFQFPN with 50Ω single-ended RF and LO inputs, and 200Ω differential IF output impedance for ease of integration.
