- Single-pole, single-throw with an absorptive termination on RF2 when isolated
- 高-performance RF
- Isolation of 53dB at 1200MHz
- Insertion loss of 0.30dB at 1200MHz
- Return loss: 23dB
- 高 linearity:
- IIP2/IIP3: 120dBm/64dBm
- CSO/CTB: -95dBC
- Single 2.7V to 5.50V supply voltage

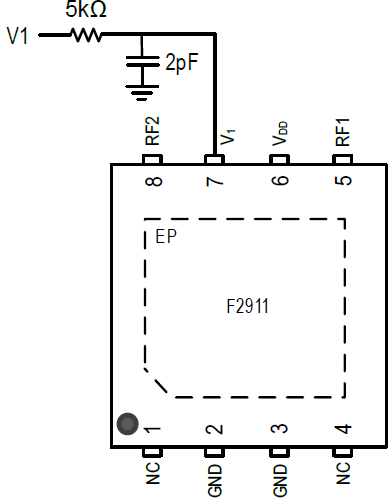

- 3.3V and 1.8V compatible control logic
- Operating temperature -40 °C to +105 °C

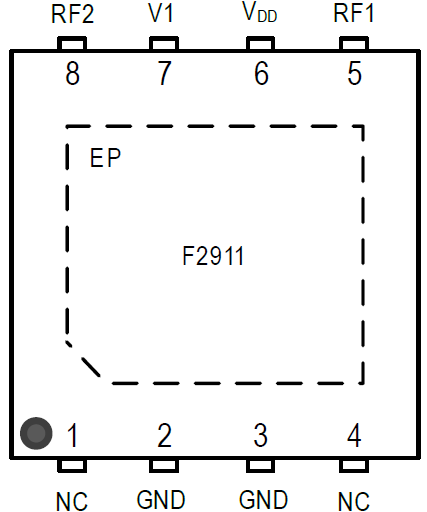

- 2mm x 2mm 8-VFQFP-N package
The F2911 is a rugged, low insertion loss, 75Ω single-pole, single-throw (SPST) absorptive RF switch designed for a multitude of CATV/Broadband 应用s. This device covers a broad frequency 范围 from 1MHz to 3500MHz. In addition to providing low insertion loss, the F2911 also delivers excellent linearity and isolation performance while providing a 75Ω termination to the RF2 port when isolated.
