产品详情
-
Very low insertion loss: 0.45 dB @ 1 GHz
-
高 输入IP3: +65 dBm
-
RF1 to RF2 Isolation: 72 dB @ 1 GHz
-
1-pin or 2-pin device control option
-
Low DC current; 50 µA using 3.3 V logic
-
Single positive 电源电压: 3.3 V
-
3.3 V or 1.8 V user-选择able control logic
-
Operating temperature -55°C to +125°C
-
4x4 20-pin TQFN 包裹
The IDT F2912 is a 高 reliability, low insertion loss 50? SPDT (SP2T) absorptive RF switch designed for a multitude of wireless and 其他 RF 应用s. This device covers a broad 频率范围 from 0.009 MHz to 9000 MHz. In addition to providing low insertion loss, the F2912 also delivers excellent linearity and isolation performance while providing 50 ohm terminations to the unused RF input port.
The F2912 uses a single positive 电源电压 of 3.3V 支持ing three 状态s using either 3.3 V or 1.8 V user-选择able control voltage. An added feature includes a Mode CTL pin allowing the user to control the device with either 1-pin or two-pin control.
Design & Development (Boards and Kit)

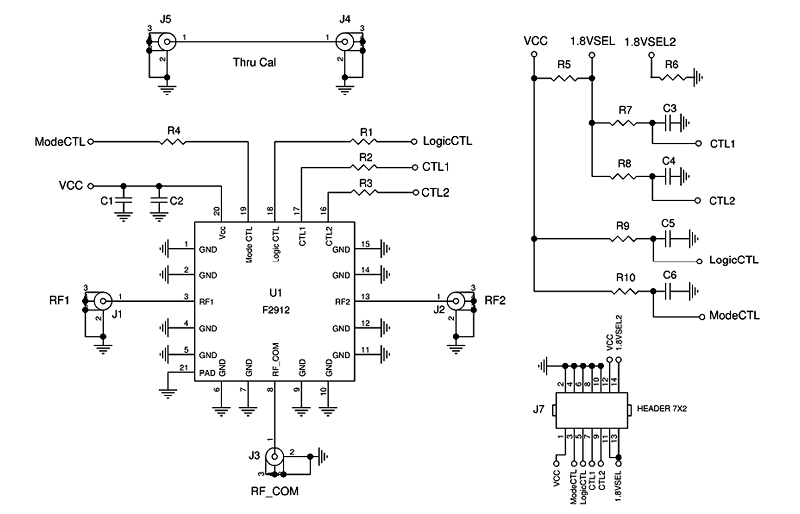

Evaluation Board for 高 Reliability SP2T RF Switch F2912
The F2912EVBI is the Evaluation Board for 高 Reliability SP2T RF Switch F2912.
