F1280

Dual VGA 0.001MHz to 1200MHz

产品详情

特征
描述
应用

200Ω differential inputs and 100Ω outputs
Dual VVA+VGA with output RMS detectors
SPI configurable VGA gain 范围
24dB gain 范围 for each VVA
Switchable dual inputs for VGA2
Power-down feature
Supply voltage: +4.75V to +5.25V
Total supply current: 145mA
5mm x 5mm, 32-VFQFPN package
-40 °C to +105 °C exposed pad operating temperature 范围

200Ω differential inputs and 100Ω outputs
Dual VVA+VGA with output RMS detectors
SPI configurable VGA gain 范围
24dB gain 范围 for each VVA
Switchable dual inputs for VGA2
Power-down feature
Supply voltage: +4.75V to +5.25V
Total supply current: 145mA
5mm x 5mm, 32-VFQFPN package
-40 °C to +105 °C exposed pad operating temperature 范围

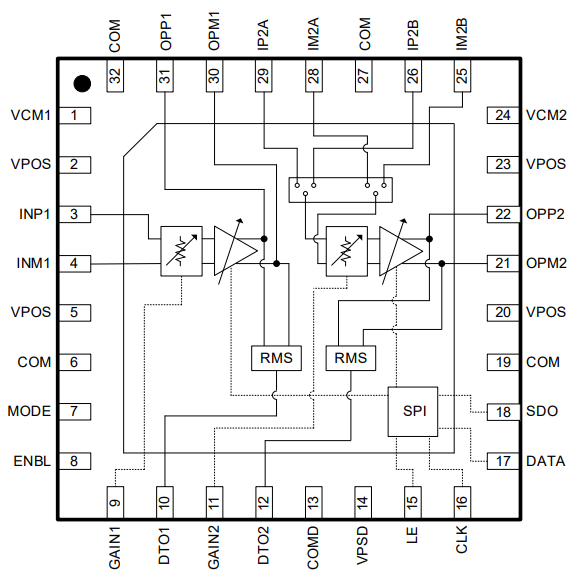

The F1280 is a 高ly integrated 0.001MHz to 1200MHz dual VVA+VGA with integrated RMS detectors. The two independently controlled VVA+VGAs each provide 24dB of gain 范围 with four different 选择able gain 范围s. The VGA gain 范围s and switchable VGA2 inputs are controlled through an SPI interface with a 10MHz maximum clock operating frequency.
