F1440

500MHz to 1000MHz Configurable 50Ω or 100Ω DIFF-In to 50Ω SE-Out Variable Gain Amplifier

联系销售人员

产品详情

特征
描述
应用

Frequency 范围: 500MHz to 1000MHz
42.5dB typical gain at 750MHz
3.2dB typical NF at 750MHz
41.5dBm typical OIP3 at 750MHz
30dBm typical OP1dB at 750MHz
Configurable 50Ω or 100Ω differential input impedance through external input BOM change
31.5dB DSA 范围 with 0.5dB 步 size
5V power supply
305mA typical quiescent current consumption
1.8V and 3.3V SPI SDI logic compatible
1.8V SPI SDO logic compatible
SPI control for DSA attenuation
Disable mode for power savings
Operating temperature (T_EPAD) 范围: -40 °C to +105 °C

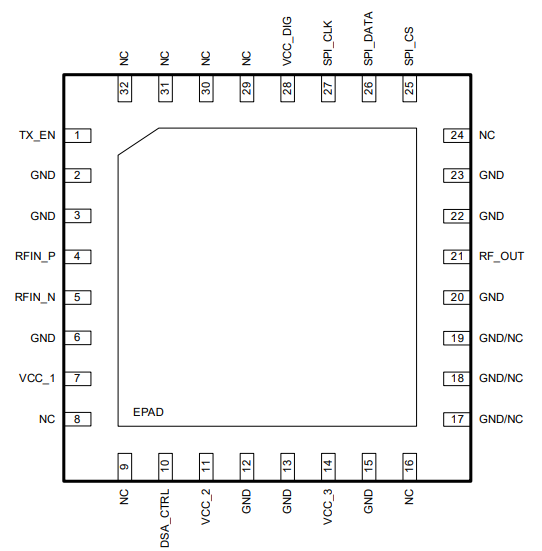

5mm x 5mm 32-VFQFPN package

Frequency 范围: 500MHz to 1000MHz
42.5dB typical gain at 750MHz
3.2dB typical NF at 750MHz
41.5dBm typical OIP3 at 750MHz
30dBm typical OP1dB at 750MHz
Configurable 50Ω or 100Ω differential input impedance through external input BOM change
31.5dB DSA 范围 with 0.5dB 步 size
5V power supply
305mA typical quiescent current consumption
1.8V and 3.3V SPI SDI logic compatible
1.8V SPI SDO logic compatible
SPI control for DSA attenuation
Disable mode for power savings
Operating temperature (T_EPAD) 范围: -40 °C to +105 °C
5mm x 5mm 32-VFQFPN package

The F1440 is a 高-linearity variable gain RF amplifier with an integrated digital 步 attenuator (DSA) designed to operate within the 500MHz to 1000MHz frequency 范围. Using a single 5V power supply, the F1440 typically provides 42.5dB of gain, 3.2dB of noise figure, 41.5dBm of OIP3, and 30dBm OP1dB at its maximum gain setting.
