Product Details
- RF range: 400 MHz to 3800 MHz
- LO range: 400 MHz to 3600 MHz
- IF range: 50 MHz to 600 MHz
- Dual path for MIMO
- 4 gain settings; 11 dB, 8 dB, 5 dB, 2 dB

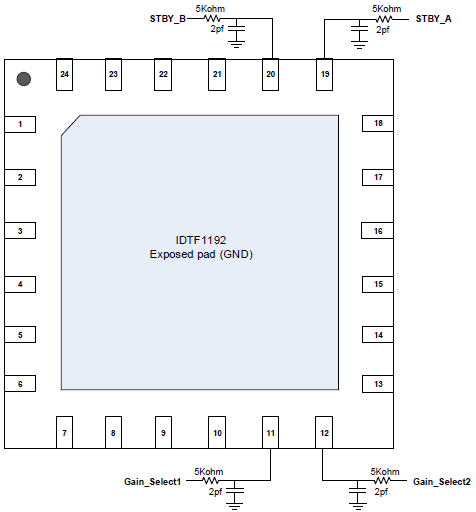

- 2-bit gain step control
- Ideal for Multi-Carrier systems
- +35 dBm OIP3
- Low noise figure at any gain setting via IDT’s FlatNoise™ technology
- Z = 200 ? IF balanced, 50 ? RF, 50 ? LO single ended
- All internally matched. Single BOM for all RF, LO and IF frequencies
- 4 mm x 4 mm, 24-pin TQFN package
- Independent Path Standby mode
- 75 nsec settling for gain adjustment
- VCC = 3.3 V, 835 mW
The F1192 offers maximum performance and flexibility at minimum power consumption. The unique and patented settable-gain feature allows it to be used in a very wide variety of radiocard applications, even allowing for dynamic adjustment of gain to maximize performance on the fly. The extremely wide RF and IF bandwidths are achieved with a fixed BOM with all internal matching. The device can function with as little as -6 dBm LO power and with independent channel shutdown modes for ease of integration into high order TDD MIMO systems.
Product Documents
Type
Name
Date
Actions
2025-08-25
PCN# : A1611-02 Add JCET China as Alternate Assembly and Change of Material Set at Alternate Assembly Location
2025-08-25
PCN# : TB1912-02 Convert Shipping Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert Shipping Media from Tube or Tray to Cut Reel
Design & Development (Boards and Kit)
Evaluation Board for F1192 VersaMixer™ Wideband / Low-Power Dual Channel
The F1192EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1192. There is onboard 4:1 Balun to translate 200 ohm IF output impedance to 50 ohm for easy evaluation. Also, jumpers are used for gain control.
