Product Details
- Broadband 700MHz to 1.1GHz
- 17.4dB typical gain at 960MHz
- 4.5dB noise figure at 960MHz
- +42dBm OIP3 at 960MHz
- +23.2dBm output P1dB at 960MHz
- Single 5V supply voltage
- ICC = 105mA
- -40 °C to +105 °C operating temperature
- 50? single-ended input/output impedances

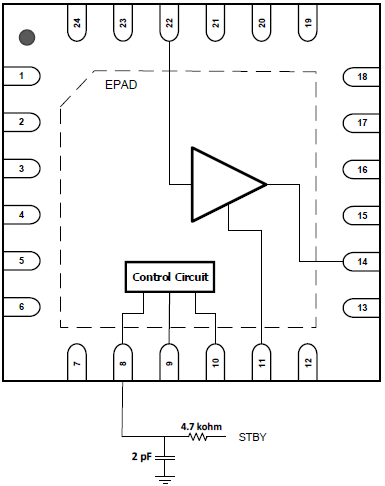

- Standby mode for power savings

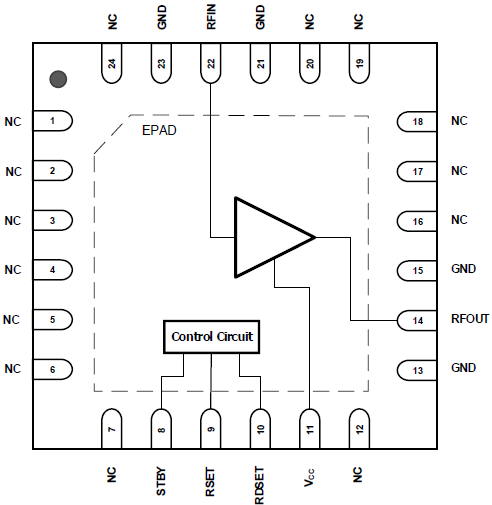

- 4mm x 4mm 24-QFN package
The F1420 is a high-gain/high-linearity RF amplifier used in high-performance RF applications. The F1420 provides 17.4dB gain with +42dBm OIP3 and a 4.5dB noise figure at 960MHz, and uses a single 5V supply and 105mA of ICC. The F1420 is packaged in a 4mm x 4mm 24-QFN with 50? RF input and RF output impedances for ease of integration into the signal path.
Product Documents
Type
Name
Date
Actions
2025-08-25
PCN#: TB1901-01 Add Alternate Test Location on Select Devices
2025-08-25
PCN# : TB1912-02 Convert Shipping Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert Shipping Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : 230017 Add alternate assembly location on select VFQFPN package
Design & Development (Boards and Kit)
.png)

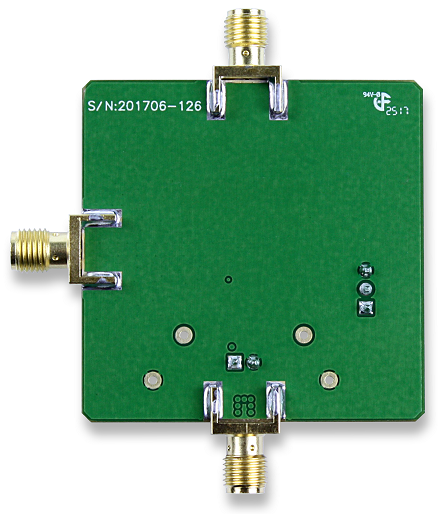

Evaluation Board for F1420 RF Amplifier 700MHz to 1.1GHz
The F1420EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1420 RF amplifier.
Part Number (2)
F1420NLGK
F1420NLGK8
