Product Details
- Single-pole double-throw (SPDT) with absorptive terminations on the isolated port
- Leading performance RF over 5MHz to 3000MHz
- Isolation: 68dB at 1200MHz
- Insertion Loss: 0.32dB at 1200MHz
- High continuous RF CW power handling at 85 °C
- Selected RF path: 27dBm
- Terminated RF path: 24dBm
- High linearity:
- IIP2/IIP3: 95dBm/63dBm
- CSO and CTB: -90dBc
- Single 2.70V to 3.60V supply voltage

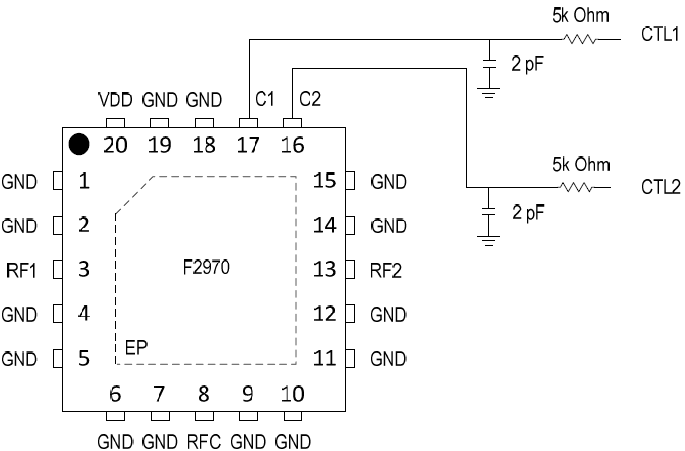

- 3.3V and 1.8V compatible control logic
- Operating temperature -40 °C to +105 °C

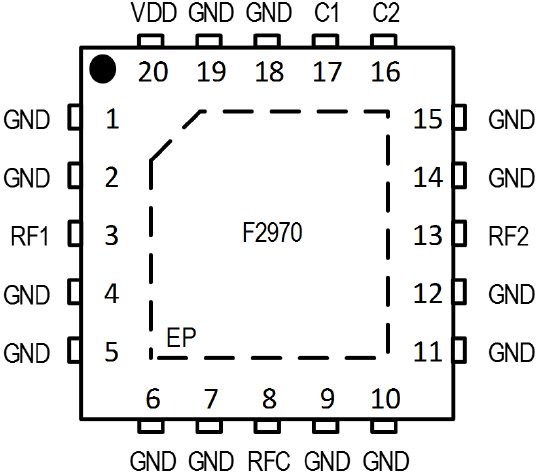

- 4mm × 4mm 20-pin LQFN package
The F2970 is a rugged, low insertion loss, 75Ω SP2T (SPDT) absorptive RF switch designed for a wide range of CATV and broadband RF applications. This device covers a broad frequency range from 5MHz to 3000MHz. In addition to having excellent linearity and isolation performance, it also provides a 75Ω termination to the isolated RF port.
Design & Development (Boards and Kit)
Evaluation Board for High Reliability SPDT Absorptive RF Switch
The F2932EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2932 RF switch.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RF1 and RF2) can be connected to RFC by applying the correct control logic voltage to the VCTL and EN control pins as outlined in the F2932 datasheet.
Part Numbers (2)
F2970NCGK
F2970NCGK8
