Product Details
- 400MHz to 3000MHz (amplifier range)
- 50MHz to 6000MHz (attenuator range)
- 12dB typical cascaded max gain
- 36dB continuous gain range
- Excellent linearity +41.5dBm OIP3
- Noise figure 4.3dB
- ICC = 106mA, 1.2mA amplifier standby current
- Bidirectional attenuator RF ports
- Positive amplifier gain slope vs. frequency to counteract system PCB loss
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- 4 RF port pinout supporting multiple lineup configurations
- 50? input and output impedances
- Broadband, internally matched
- 5mm x 5mm, 32-TQFN package

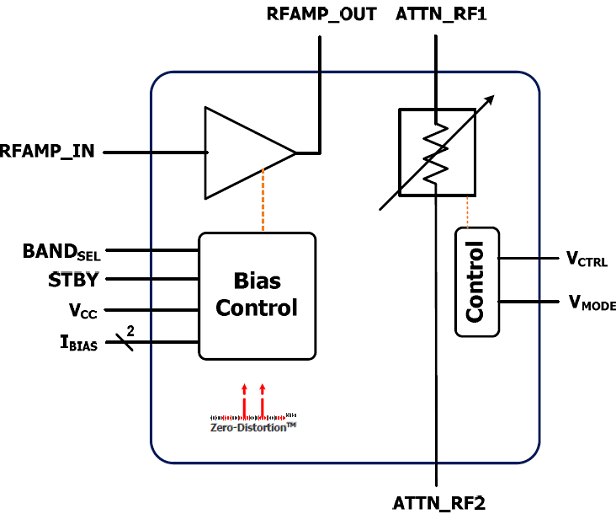

The F2480 is a 400MHz to 3000MHz RF Analog Variable Gain Amplifier (AVGA) that can be used in receivers, transmitters, and other applications. Either the amplifier or Voltage Variable Attenuator (VVA) can be configured as the first stage in the cascade. The F2480 RF AVGA provides a 12dB typical maximum cascade gain (no attenuation) with a 4.3dB noise figure (amplifier as first stage) and a 36dB gain adjustment designed to operate with a single +5V supply. Nominally, the Zero-Distortion™ amplifier offers +41.5dBm output IP3 using 106mA of ICC. This device is packaged in a 5mm x 5mm, 32-TQFN with 50? single-ended RF input and RF output impedances for ease of integration into the signal-path lineup.
Product Documents
Type
Name
Date
Actions
Design & Development (Boards and Kit)

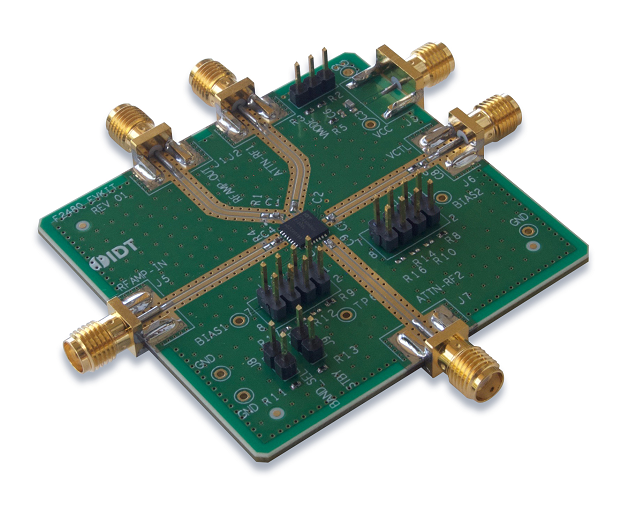

Evaluation Kit for F2480 Broadband RF Analog VGA
The F2480EVBI is a fully populated evaluation board that allows the customer to easily evaluate the F2480 Analog VGA. Complete instructions for the EBV, pin descriptions and the schematic can be found in the product datasheet.
Part Number (3)
F2480NBGI
F2480NBGI8
F2480EVBI
